ATION (BUR over Concrete or Steel Deck)
Spec Note: Short form clauses only are shown here. See long form 3-Part specification at end of section. Square brackets [] indicate an option to be selected/inserted by the specifi- er. Remove brackets and unused options before printing.
Acceptable mechanical unit roof support manufacturer:
Altra Metal Specialties Inc., 222 Islington Avenue, Unit 3, Toronto, ON M8V 3W7; Tel: 416-503-9453 or 1-888-472-5872; Fax: 416-503-8963; Email: info@altrametal.ca; Web: www.altrametal.ca.

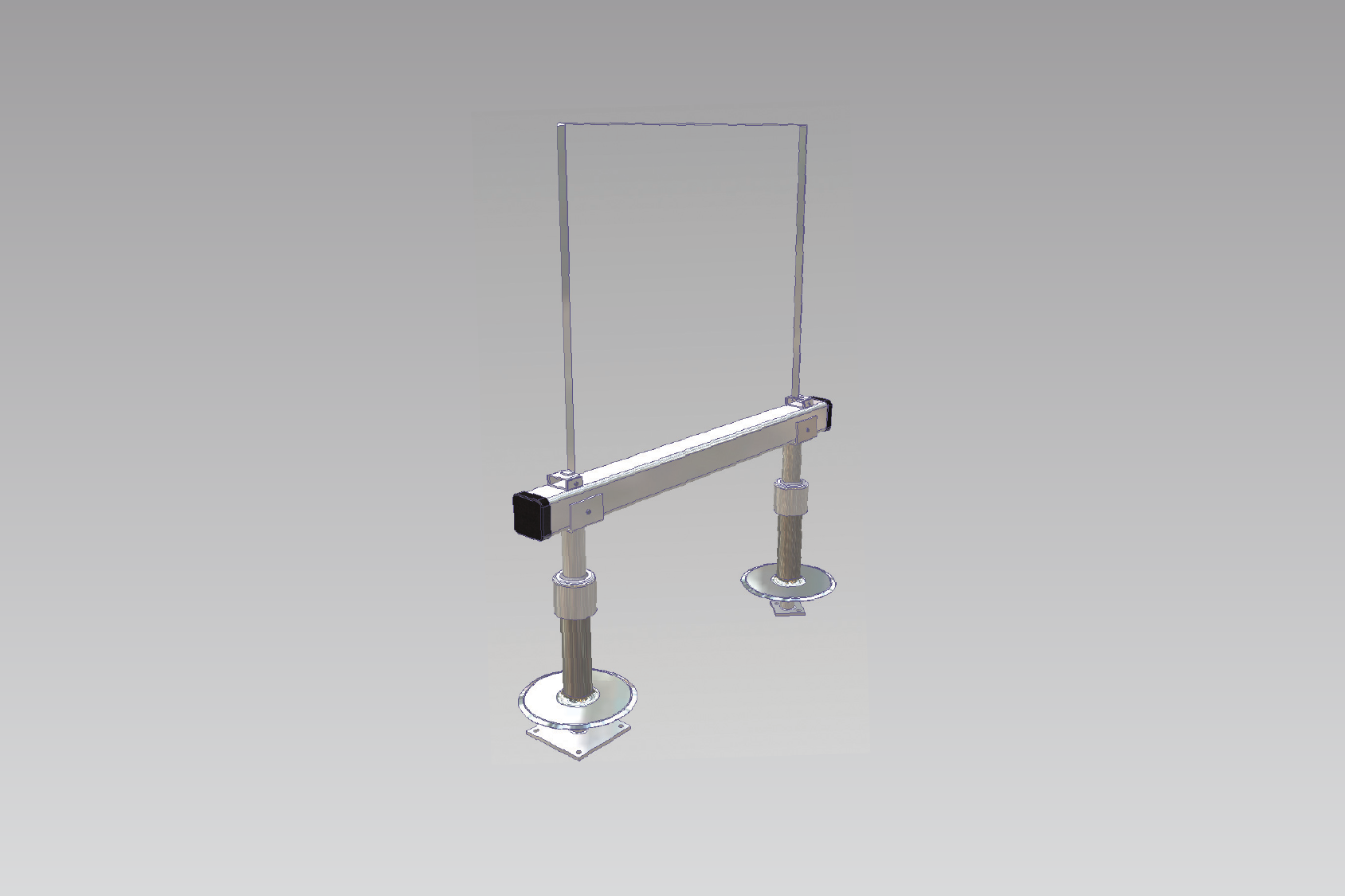

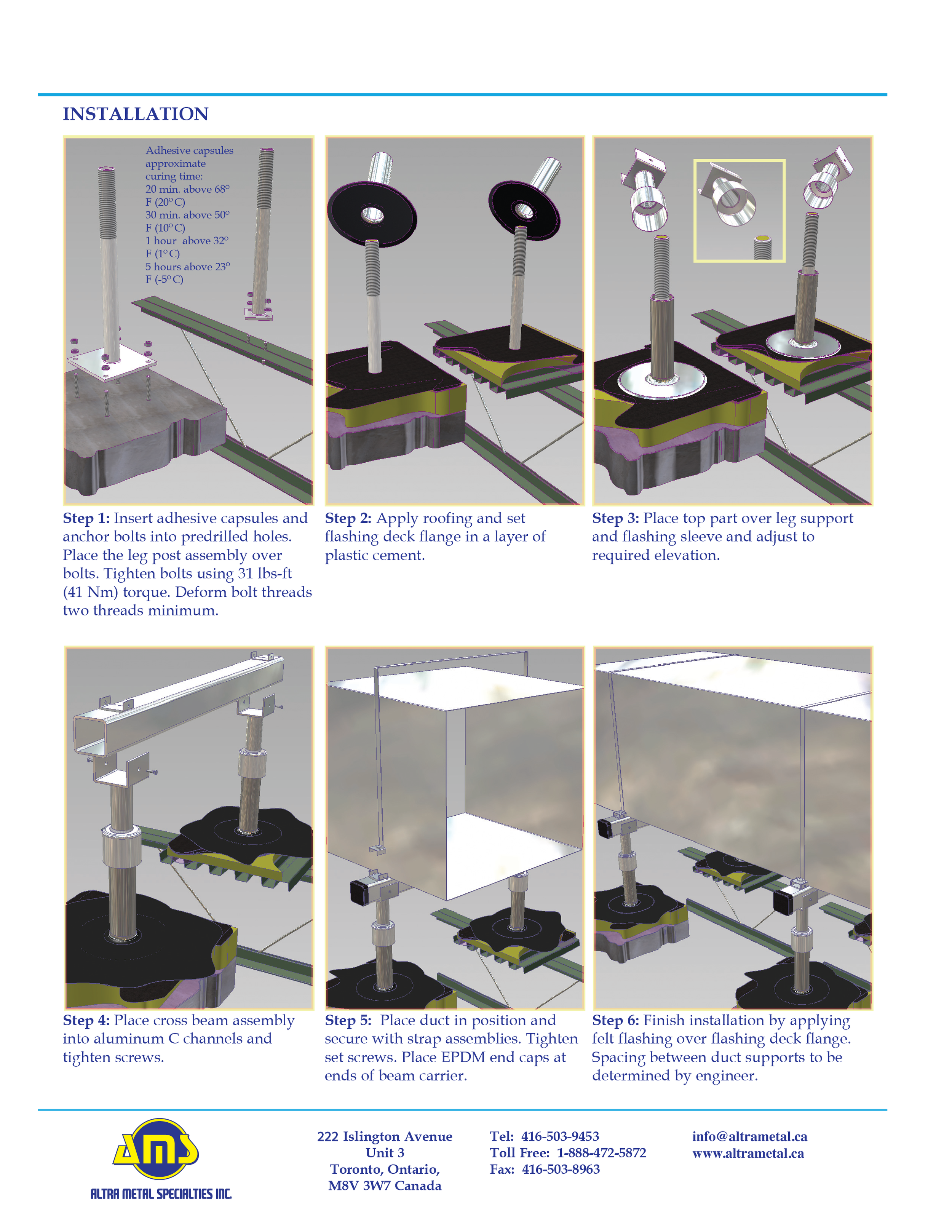

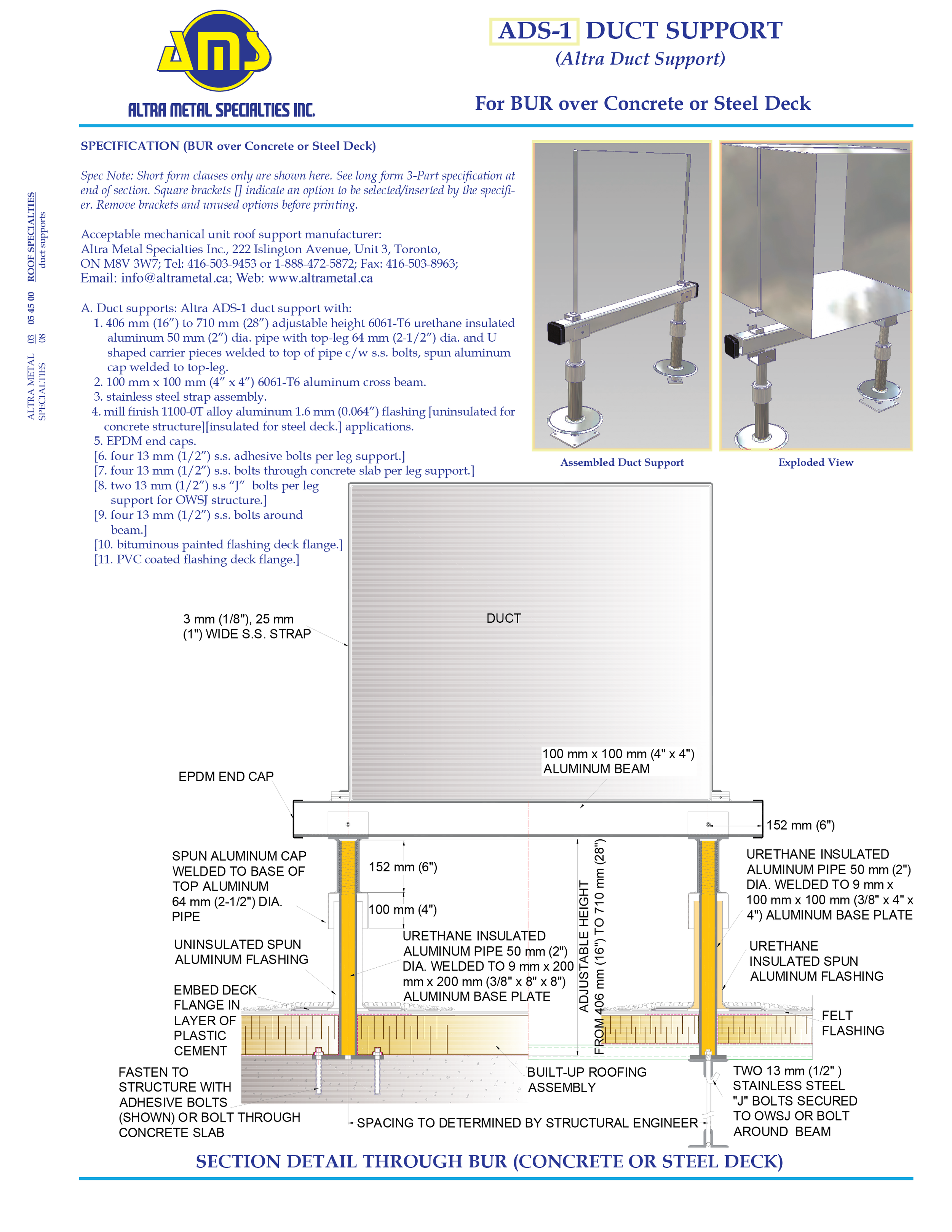

A. Duct supports: Altra ADS-1 duct support with:
1. 406 mm (16”) to 710 mm (28”) adjustable height 6061-T6 urethane insulated
aluminum 50 mm (2”) dia. pipe with top-leg 64 mm (2-1/2”) dia. and U shaped carrier pieces welded to top of pipe c/w s.s. bolts, spun aluminum cap welded to top-leg.
2. 100 mm x 100 mm (4” x 4”) 6061-T6 aluminum cross beam. 3. stainless steel strap assembly.
4. mill finish 1100-0T alloy aluminum 1.6 mm (0.064”) flashing [uninsulated for concrete structure][insulated for steel deck.] applications.
5. EPDM end caps.
[6. four 13 mm (1/2”) s.s. adhesive bolts per leg support.]
[7. four 13 mm (1/2”) s.s. bolts through concrete slab per leg support.]
[8. two 13 mm (1/2”) s.s “J” bolts per legsupport for OWSJ structure.]
[9. four 13 mm (1/2”) s.s. bolts around beam.]
[10. bituminous painted flashing deck flange.] [11. PVC coated flashing deck flange.]
SPECIFICATION (BUR over Concrete or Steel Deck)
Spec Note: Short form clauses only are shown here. See long form 3-Part specification at end of section. Square brackets [] indicate an option to be selected/inserted by the specifi- er. Remove brackets and unused options before printing.
Acceptable mechanical unit roof support manufacturer: Altra Metal Specialties Inc., 222 Islington Avenue, Unit 3, Toronto, ON M8V 3W7; Tel: 416-503-9453 or 1-888-472-5872; Fax: 416-503-8963; Email: info@altrametal.ca; Web: www.altrametal.ca.

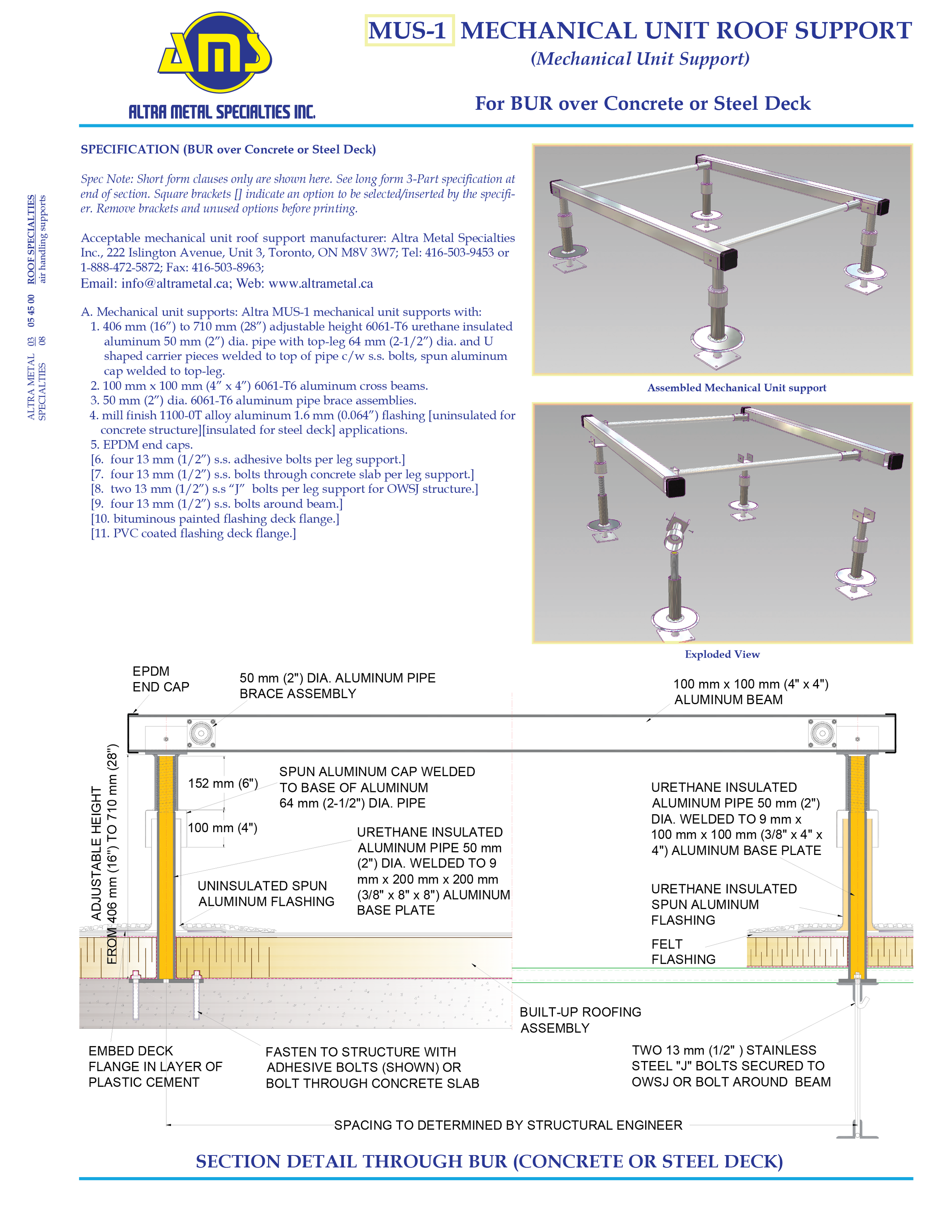

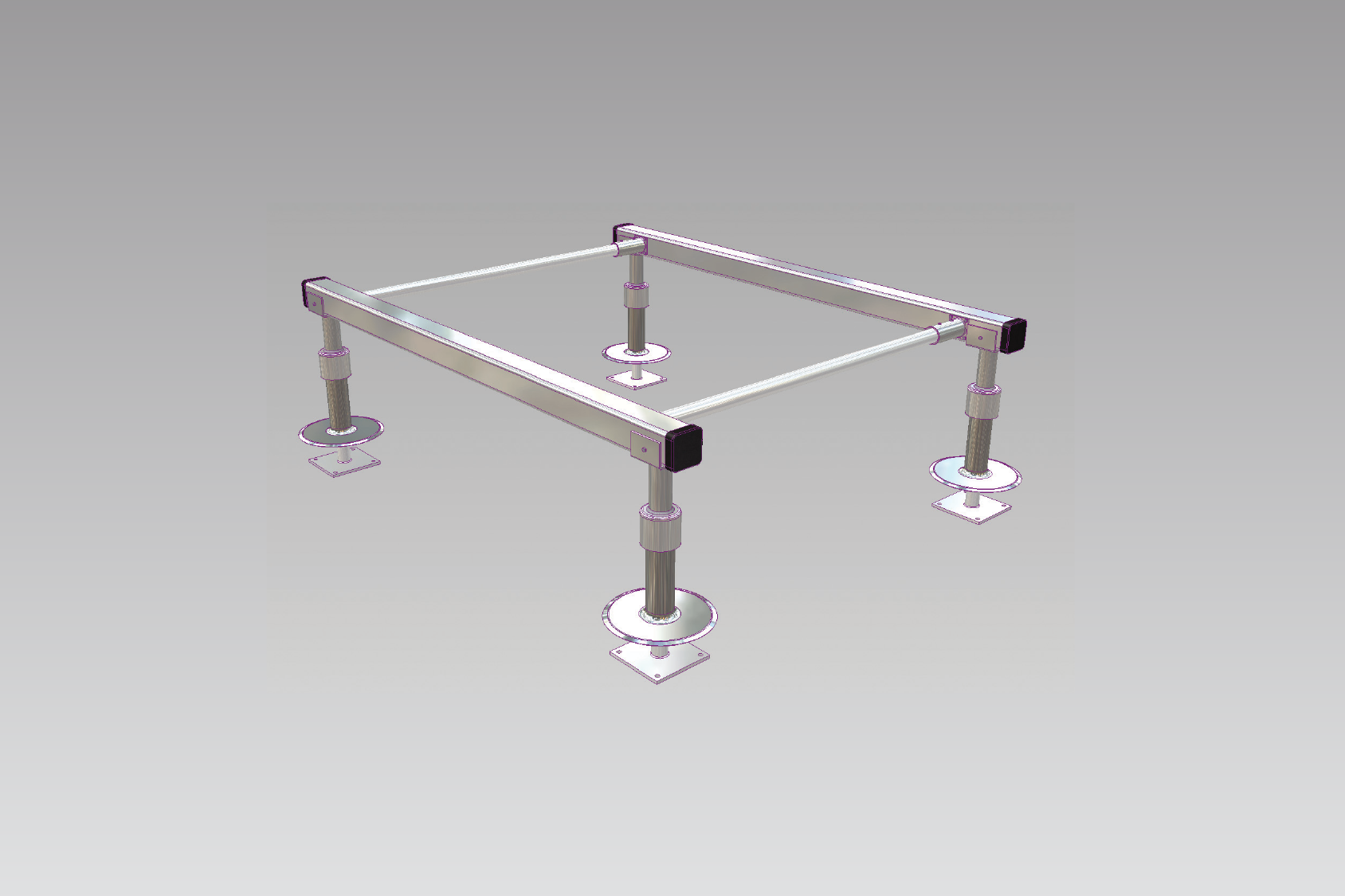

A. Mechanical unit supports: Altra MUS-1 mechanical unit supports with:
1. 406 mm (16”) to 710 mm (28”) adjustable height 6061-T6 urethane insulated
aluminum 50 mm (2”) dia. pipe with top-leg 64 mm (2-1/2”) dia. and U shaped carrier pieces welded to top of pipe c/w s.s. bolts, spun aluminum cap welded to top-leg.
2. 100 mm x 100 mm (4” x 4”) 6061-T6 aluminum cross beams.
3. 50 mm (2”) dia. 6061-T6 aluminum pipe brace assemblies.
4. mill finish 1100-0T alloy aluminum 1.6 mm (0.064”) flashing [uninsulated for
concrete structure][insulated for steel deck] applications.
5. EPDM end caps.
[6. four 13 mm (1/2”) s.s. adhesive bolts per leg support.]
[7. four 13 mm (1/2”) s.s. bolts through concrete slab per leg support.] [8. two 13 mm (1/2”) s.s “J” bolts per leg support for OWSJ structure.] [9. four 13 mm (1/2”) s.s. bolts around beam.]
[10. bituminous painted flashing deck flange.] [11. PVC coated flashing deck flange.]
SPECIFICATION (BUR over Concrete or Steel Deck)
Spec Note: Short form clauses only are shown here. See long form 3-Part specification at end of section. Square brackets [] indicate an option to be selected/inserted by the specifi- er. Remove brackets and unused options before printing.
Acceptable roof pipe support manufacturer: Altra Metal Specialties Inc., 222 Islington Avenue, Unit 3, Toronto, ON M8V 3W7; Tel: 416-503-9453 or 1-888-472-5872; Fax: 416-503-8963; Email: info@altrametal.ca; Web: www.altrametal.ca.

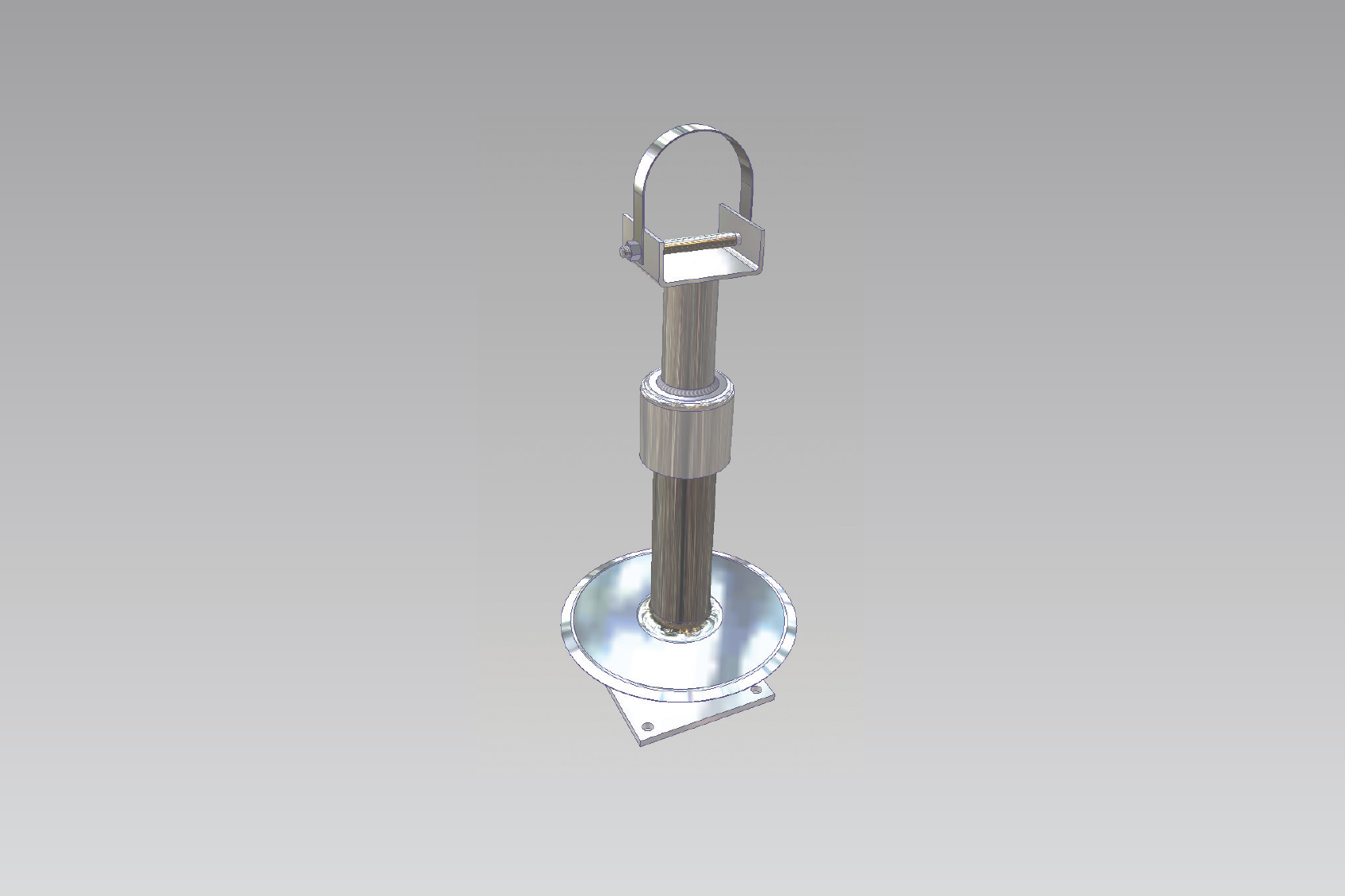

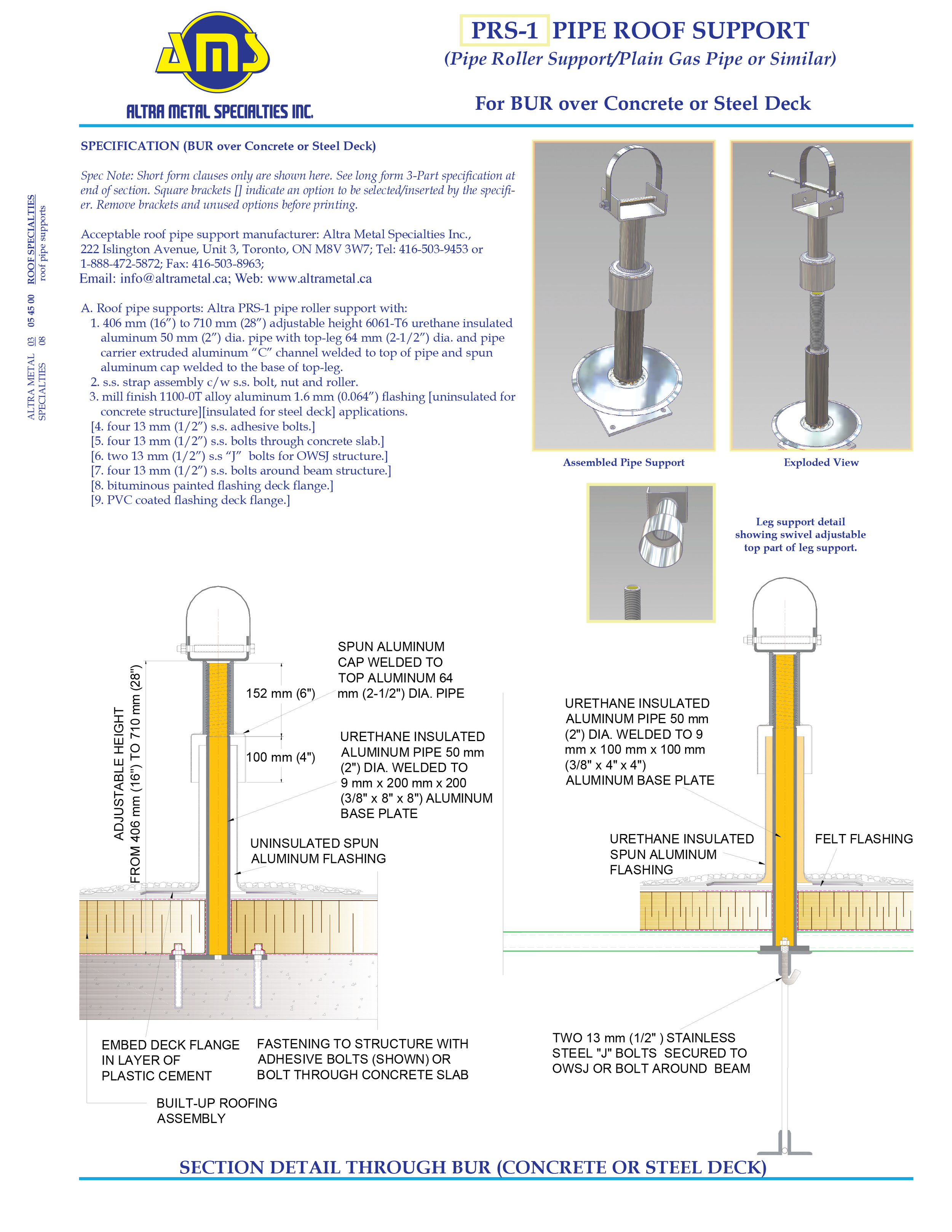

A. Roof pipe supports: Altra PRS-1 pipe roller support with:
1. 406 mm (16”) to 710 mm (28”) adjustable height 6061-T6 urethane insulated
aluminum 50 mm (2”) dia. pipe with top-leg 64 mm (2-1/2”) dia. and pipe carrier extruded aluminum “C” channel welded to top of pipe and spun aluminum cap welded to the base of top-leg.
2. s.s. strap assembly c/w s.s. bolt, nut and roller.
3. mill finish 1100-0T alloy aluminum 1.6 mm (0.064”) flashing [uninsulated for
concrete structure][insulated for steel deck] applications. [4. four 13 mm (1/2”) s.s. adhesive bolts.]
[5. four 13 mm (1/2”) s.s. bolts through concrete slab.]
[6. two 13 mm (1/2”) s.s “J” bolts for OWSJ structure.]
[7. four 13 mm (1/2”) s.s. bolts around beam structure.] [8. bituminous painted flashing deck flange.]
[9. PVC coated flashing deck flange.]
SPECIFICATION (BUR over Concrete or Steel Deck)
Spec Note: Short form clauses only are shown here. See long form 3-Part specification at end of section. Square brackets [] indicate an option to be selected/inserted by the specifi- er. Remove brackets and unused options before printing.
Acceptable pipe roof support manufacturer: Altra Metal Specialties Inc., 222 Isligton Avenue, Unit 3, Toronto, ON M8V 3W7; Tel: 416-503-9453 or 1-888-472-5872; Fax: 416-503-8963;Email: info@altrametal.ca; Web: www.altrametal.ca.

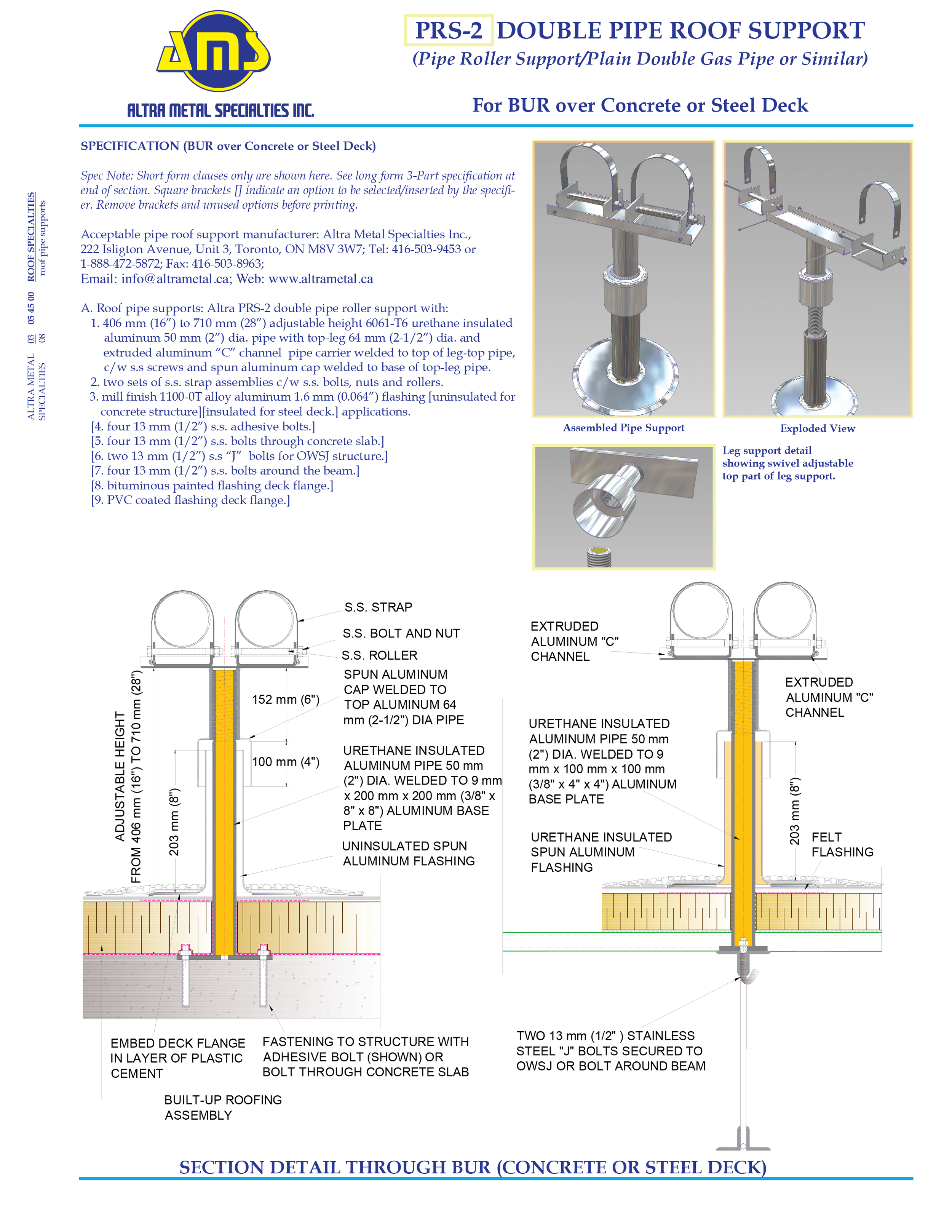

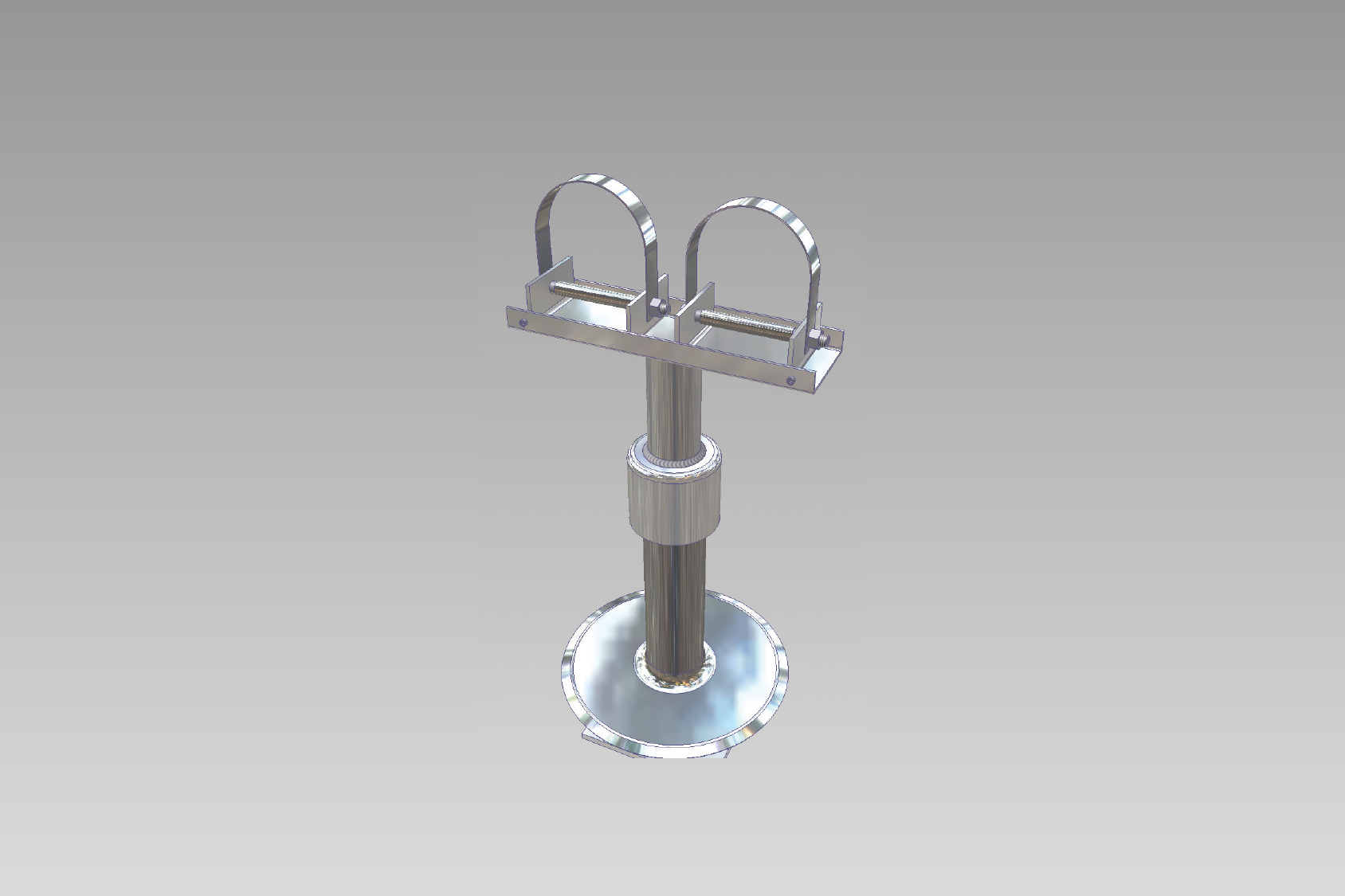

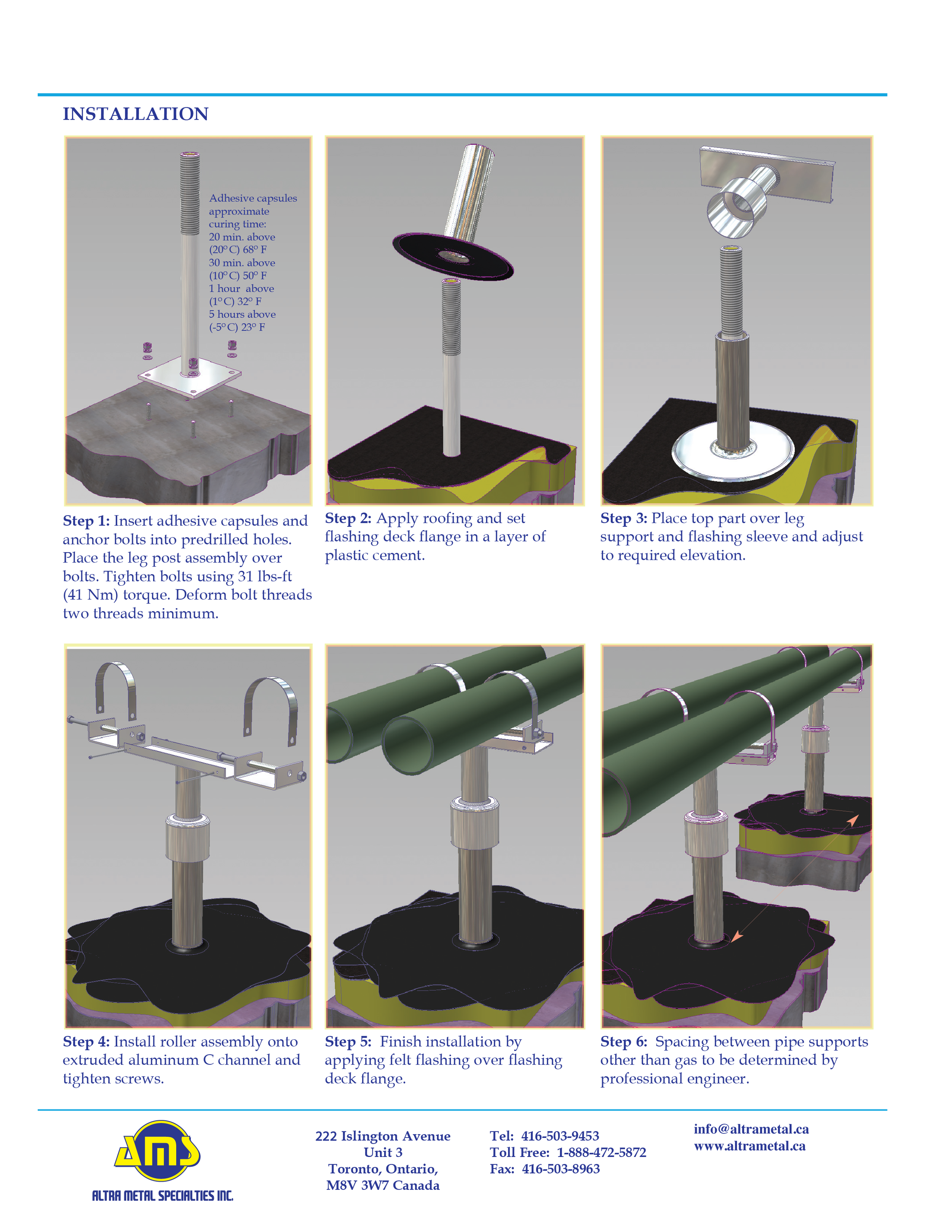

A. Roof pipe supports: Altra PRS-2 double pipe roller support with:
1. 406 mm (16”) to 710 mm (28”) adjustable height 6061-T6 urethane insulated
aluminum 50 mm (2”) dia. pipe with top-leg 64 mm (2-1/2”) dia. and extruded aluminum “C” channel pipe carrier welded to top of leg-top pipe, c/w s.s screws and spun aluminum cap welded to base of top-leg pipe.
2. two sets of s.s. strap assemblies c/w s.s. bolts, nuts and rollers.
3. mill finish 1100-0T alloy aluminum 1.6 mm (0.064”) flashing [uninsulated for
concrete structure][insulated for steel deck.] applications. [4. four 13 mm (1/2”) s.s. adhesive bolts.]
[5. four 13 mm (1/2”) s.s. bolts through concrete slab.]
[6. two 13 mm (1/2”) s.s “J” bolts for OWSJ structure.]
[7. four 13 mm (1/2”) s.s. bolts around the beam.] [8. bituminous painted flashing deck flange.]
[9. PVC coated flashing deck flange.]
SPECIFICATION (BUR over Concrete or Steel Deck)
Spec Note: Short form clauses only are shown here. See long form 3-Part specification at end of section. Square brackets [] indicate an option to be selected/inserted by the specifier. Remove brackets and unused options before printing.
Acceptable roof pipe support manufacturer: Altra Metal Specialties Inc., 222 Islington Avenue, Unit 3, Toronto, ON M8V 3W7; Tel: 416-503-9453 or 1-888-472-5872; Fax: 416-503-8963; Email: info@altrametal.ca; Web: www.altrametal.ca.

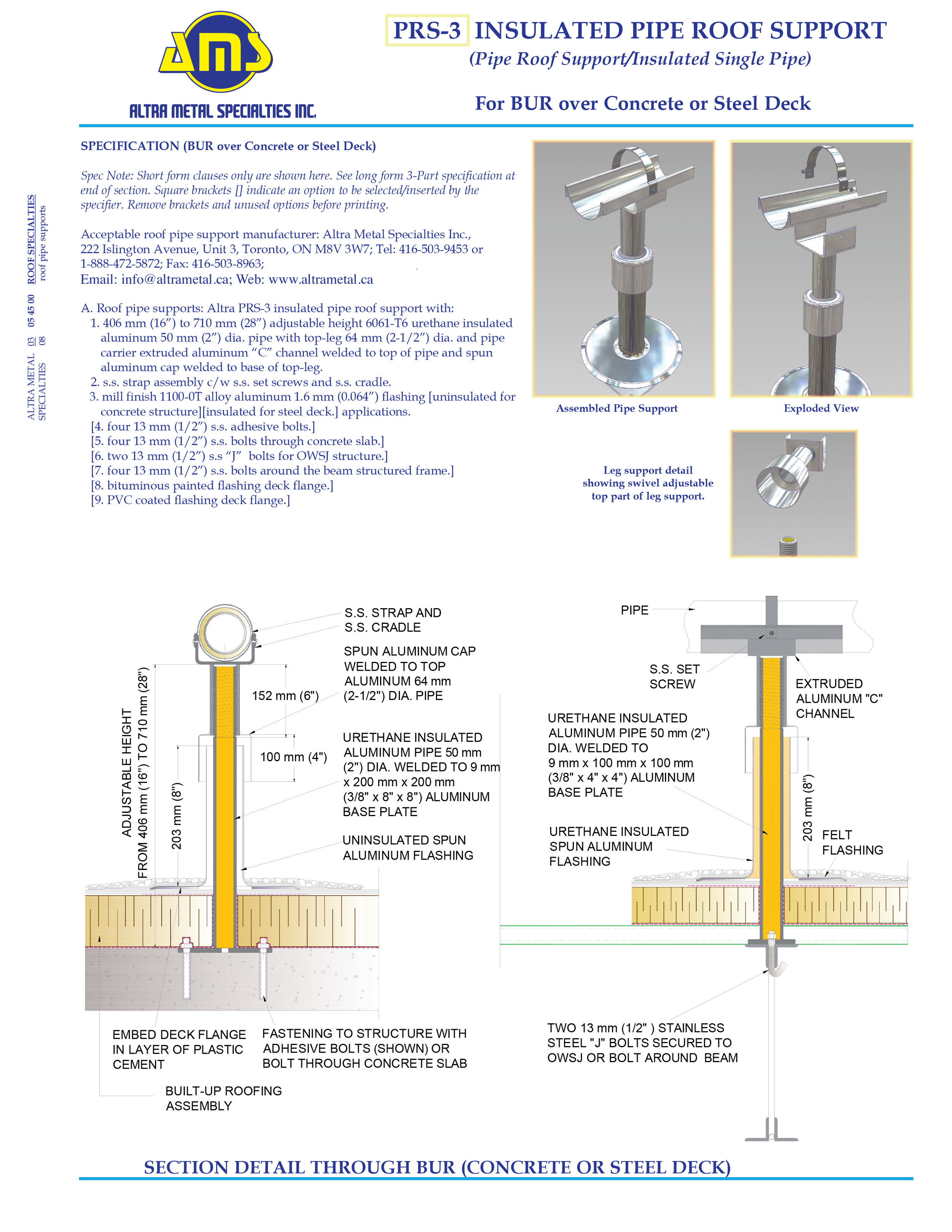

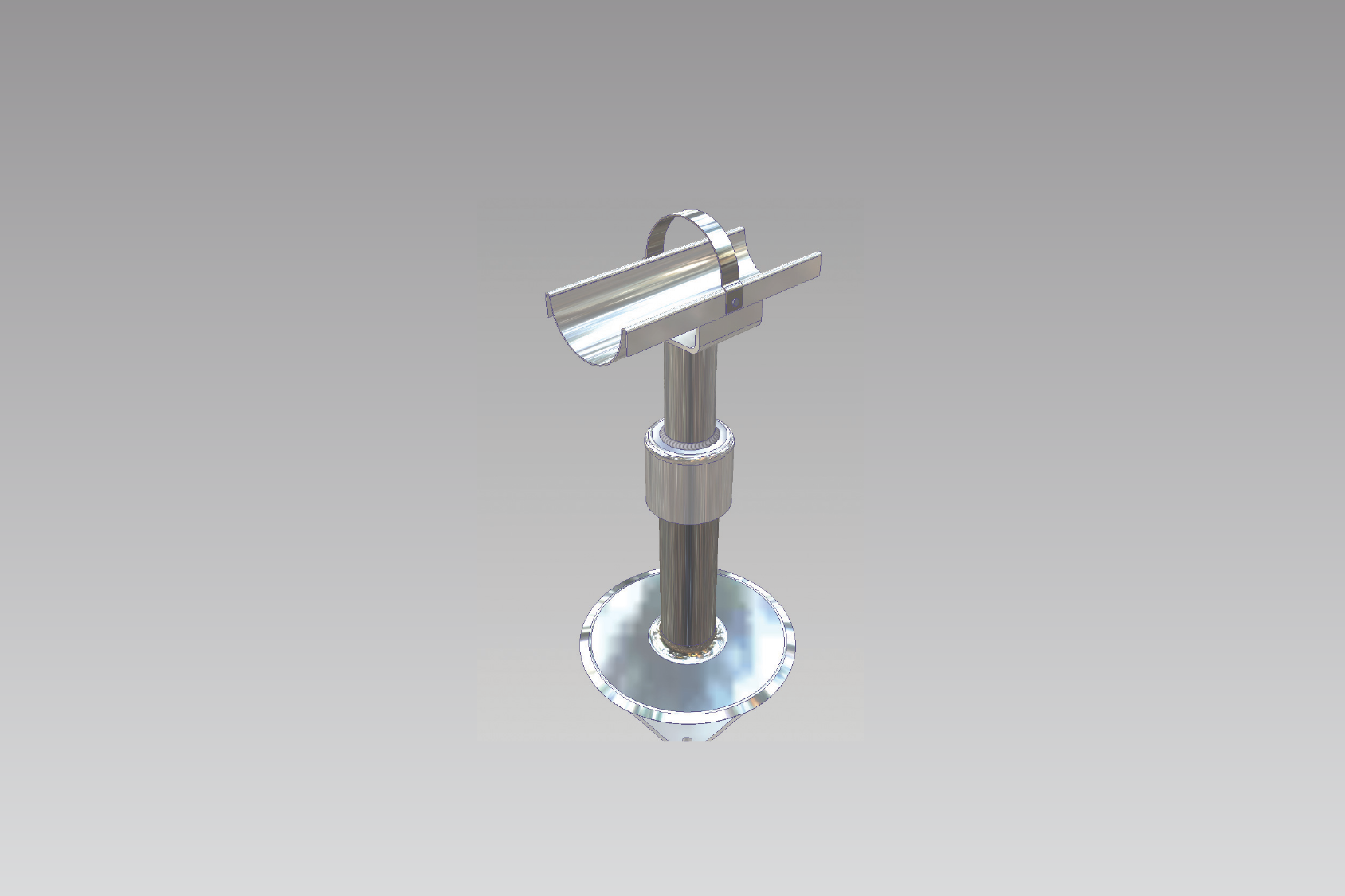

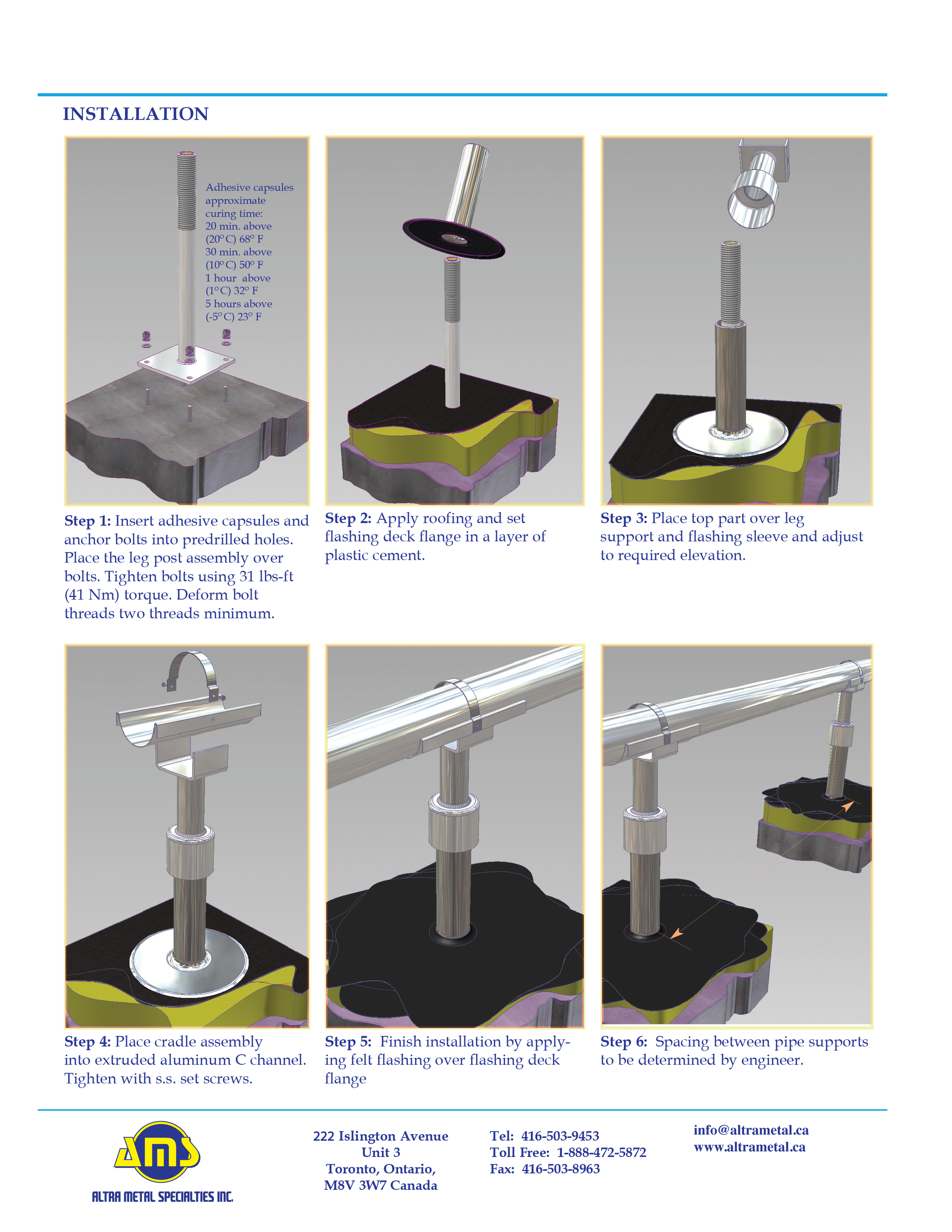

A. Roof pipe supports: Altra PRS-3 insulated pipe roof support with:
1. 406 mm (16”) to 710 mm (28”) adjustable height 6061-T6 urethane insulated
aluminum 50 mm (2”) dia. pipe with top-leg 64 mm (2-1/2”) dia. and pipe carrier extruded aluminum “C” channel welded to top of pipe and spun aluminum cap welded to base of top-leg.
2. s.s. strap assembly c/w s.s. set screws and s.s. cradle.
3. mill finish 1100-0T alloy aluminum 1.6 mm (0.064”) flashing [uninsulated for
concrete structure][insulated for steel deck.] applications. [4. four 13 mm (1/2”) s.s. adhesive bolts.]
[5. four 13 mm (1/2”) s.s. bolts through concrete slab.]
[6. two 13 mm (1/2”) s.s “J” bolts for OWSJ structure.]
[7. four 13 mm (1/2”) s.s. bolts around the beam structured frame.] [8. bituminous painted flashing deck flange.]
[9. PVC coated flashing deck flange.]
SPECIFICATION (BUR over Concrete or Steel Deck)
Spec Note: Short form clauses only are shown here. See long form 3-Part specification at end of section. Square brackets [] indicate an option to be selected/inserted by the specifi- er. Remove brackets and unused options before printing.
Acceptable roof pipe support manufacturer: Altra Metal Specialties Inc., 222 Islington Avenue, Unit 3, Toronto, ON M8V 3W7; Tel: 416-503-9453 or 1-888-472-5872; Fax: 416-503-8963;Email: info@altrametal.ca; Web: www.altrametal.ca.

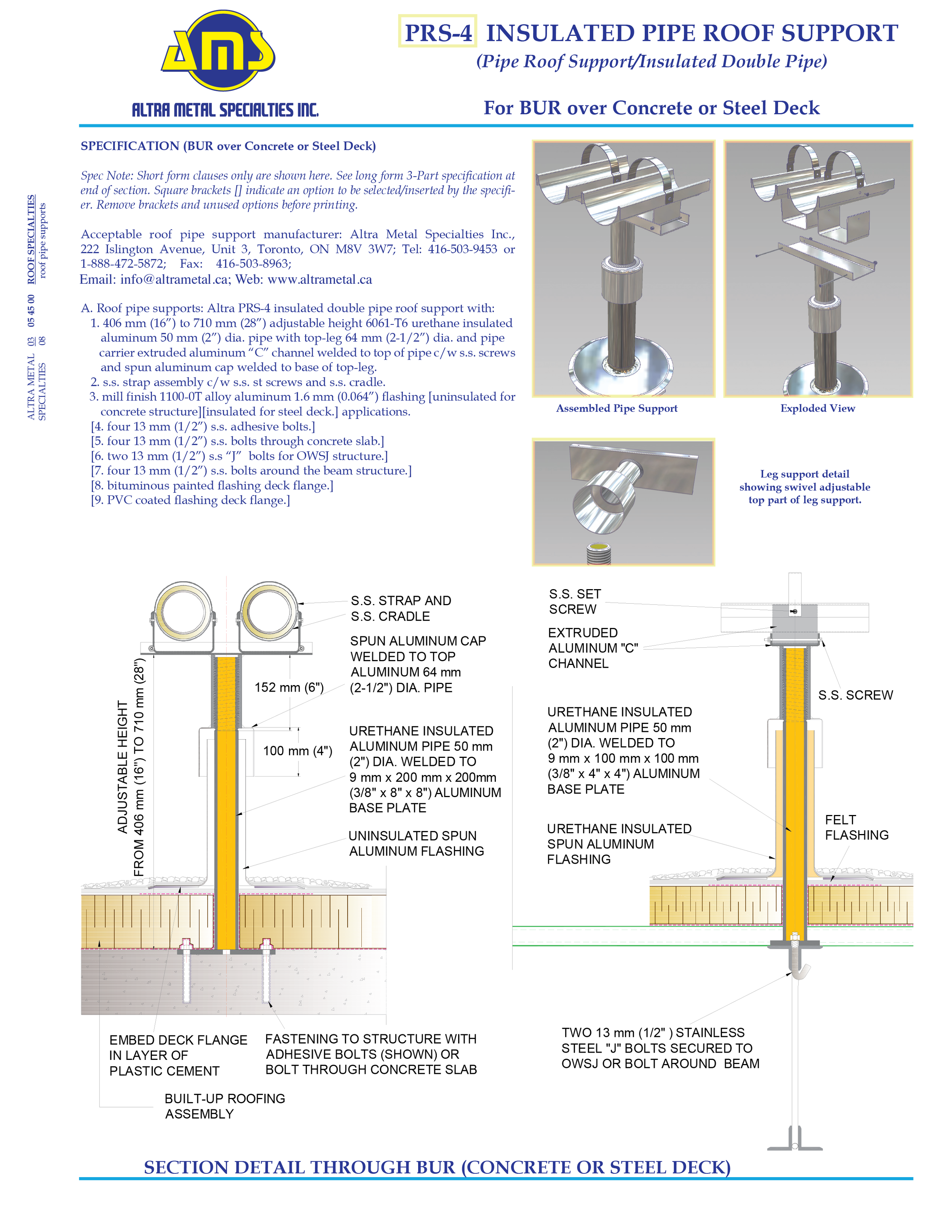

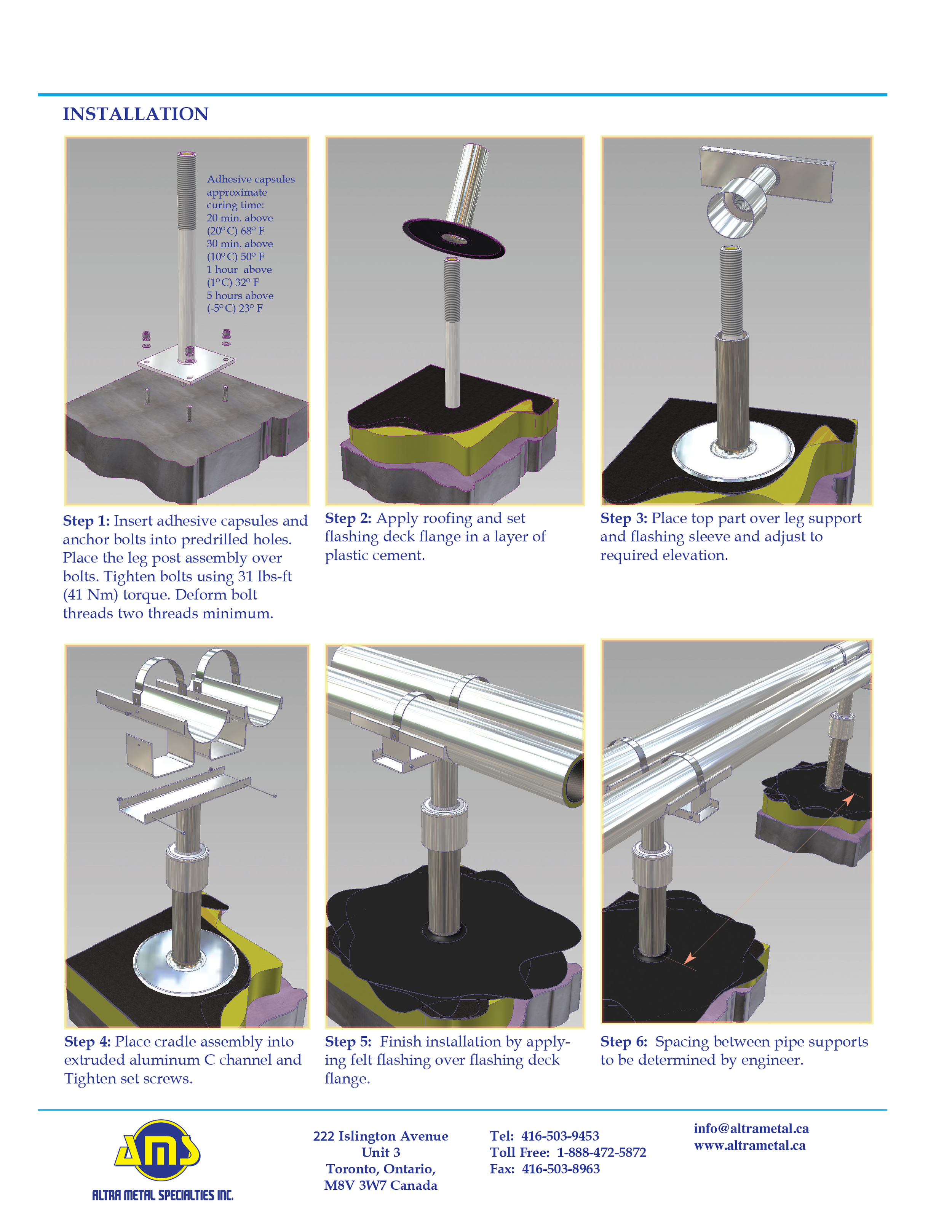

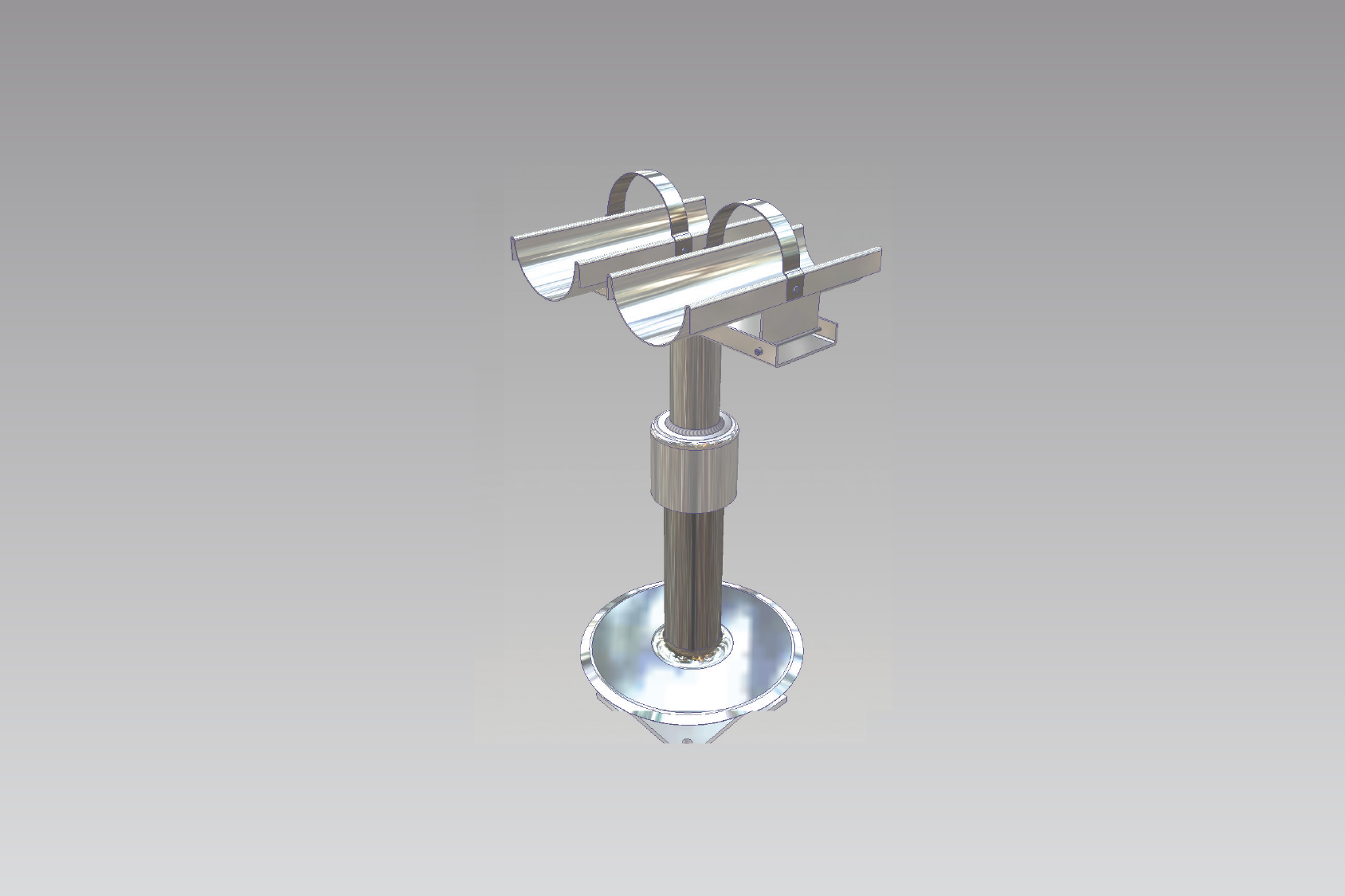

A. Roof pipe supports: Altra PRS-4 insulated double pipe roof support with:
1. 406 mm (16”) to 710 mm (28”) adjustable height 6061-T6 urethane insulated
aluminum 50 mm (2”) dia. pipe with top-leg 64 mm (2-1/2”) dia. and pipe carrier extruded aluminum “C” channel welded to top of pipe c/w s.s. screws and spun aluminum cap welded to base of top-leg.
2. s.s. strap assembly c/w s.s. st screws and s.s. cradle.
3. mill finish 1100-0T alloy aluminum 1.6 mm (0.064”) flashing [uninsulated for
concrete structure][insulated for steel deck.] applications. [4. four 13 mm (1/2”) s.s. adhesive bolts.]
[5. four 13 mm (1/2”) s.s. bolts through concrete slab.]
[6. two 13 mm (1/2”) s.s “J” bolts for OWSJ structure.]
[7. four 13 mm (1/2”) s.s. bolts around the beam structure.] [8. bituminous painted flashing deck flange.]
[9. PVC coated flashing deck flange.]
SPECIFICATION (BUR over Concrete or Steel Deck)
Spec Note: Short form clauses only are shown here. See long form 3-Part specification at end of section. Square brackets [] indicate an option to be selected/inserted by the specifier. Remove brackets and unused options before printing.
Acceptable roof pipe support manufacturer: Altra Metal Specialties Inc., 222 Islington Avenue, Unit 3, Toronto, ON M8V 3W7; Tel: 416-503-9453 or 1-888-472-5872; Fax: 416-503-8963; Email: info@altrametal.ca; Web: www.altrametal.ca.

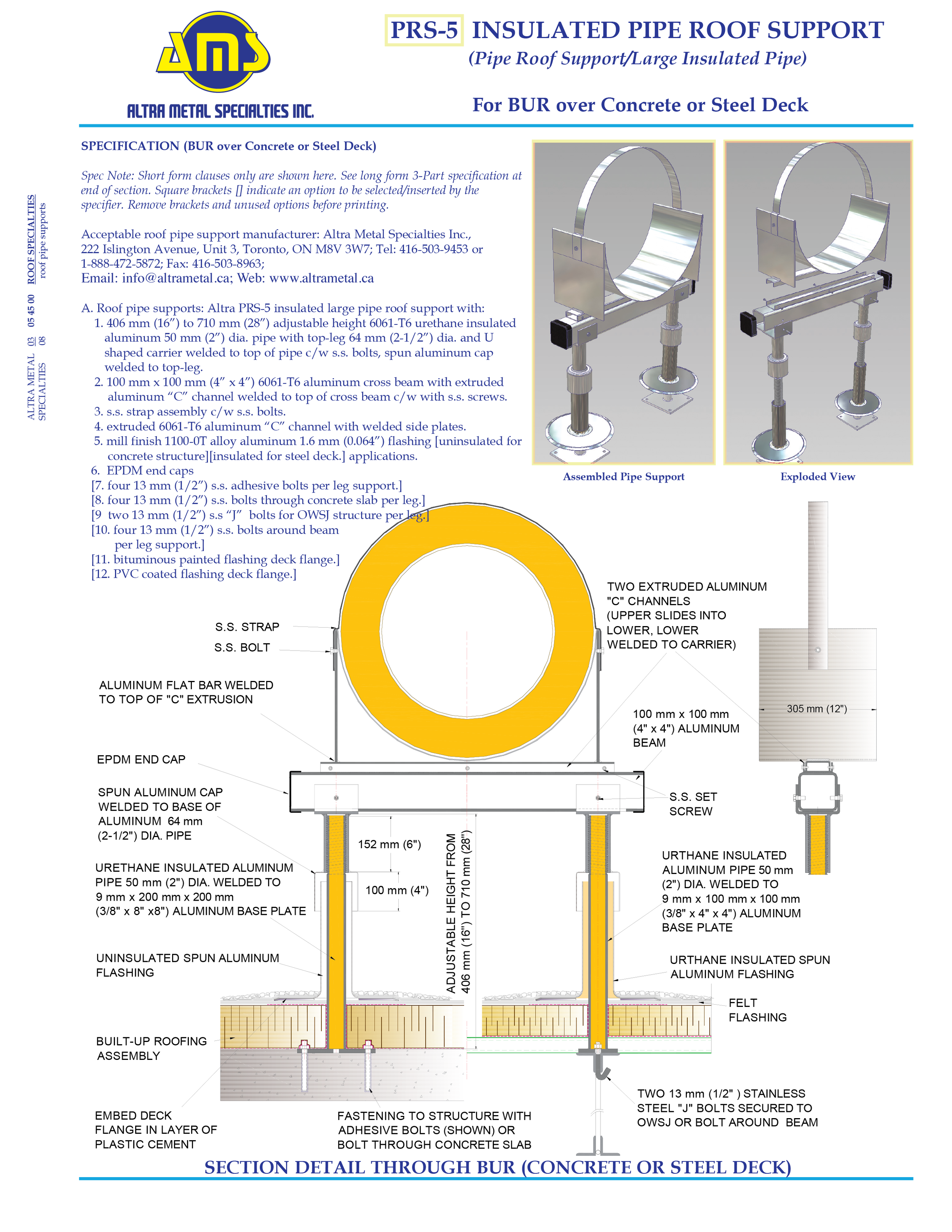

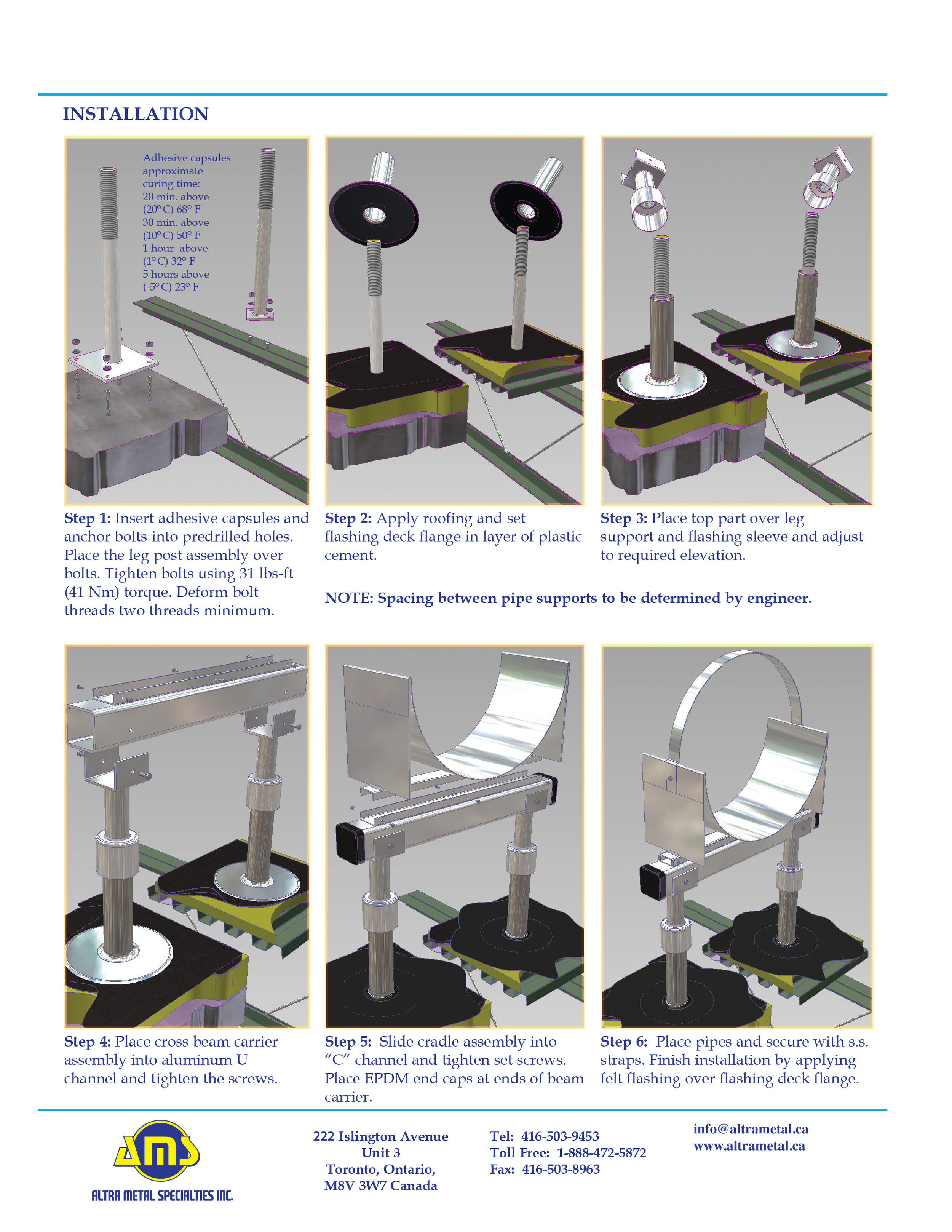

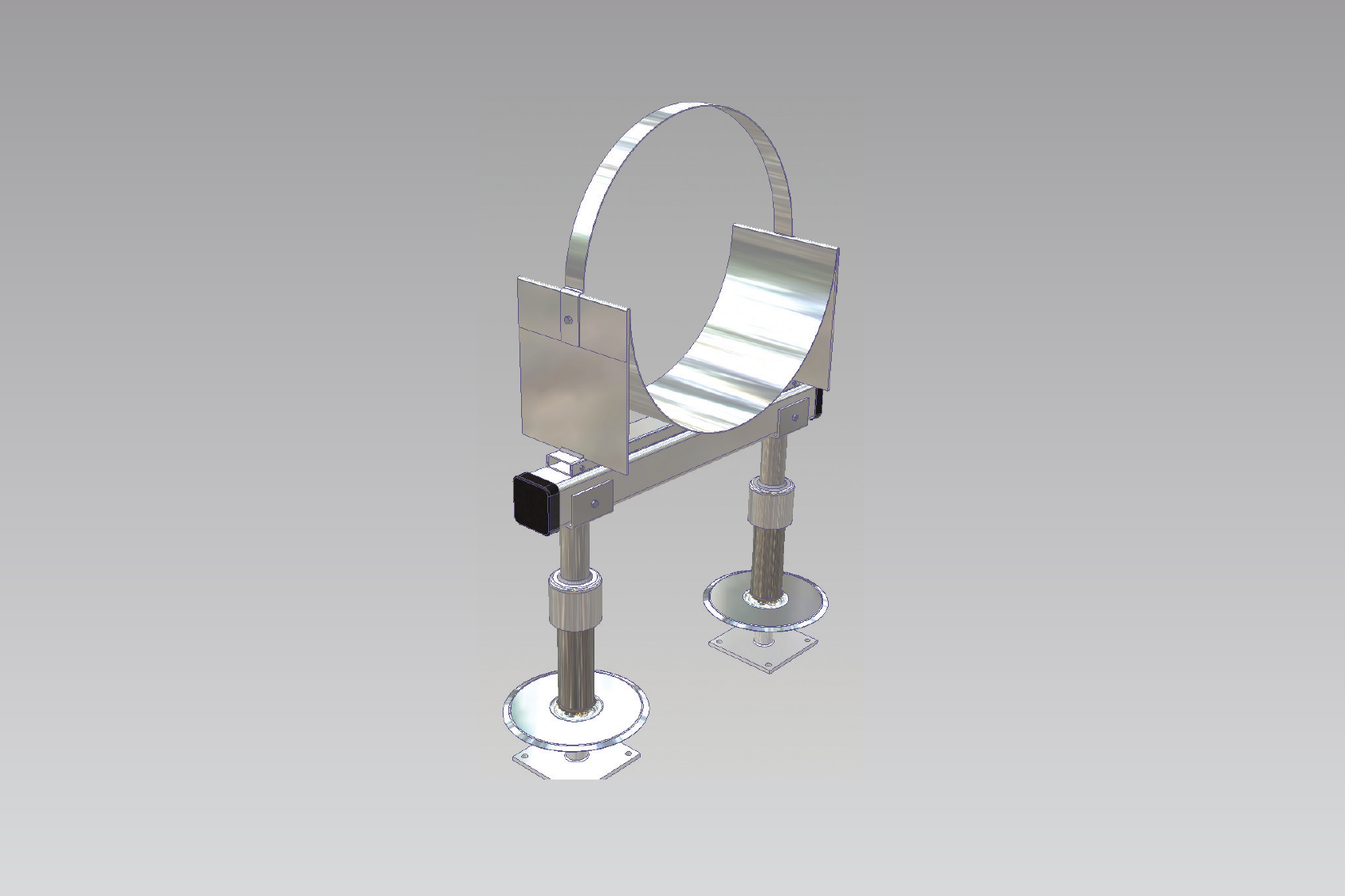

A. Roof pipe supports: Altra PRS-5 insulated large pipe roof support with:
1. 406 mm (16”) to 710 mm (28”) adjustable height 6061-T6 urethane insulated aluminum 50 mm (2”) dia. pipe with top-leg 64 mm (2-1/2”) dia. and U shaped carrier welded to top of pipe c/w s.s. bolts, spun aluminum cap welded to top-leg.
2. 100 mm x 100 mm (4” x 4”) 6061-T6 aluminum cross beam with extruded aluminum “C” channel welded to top of cross beam c/w with s.s. screws.
3. s.s. strap assembly c/w s.s. bolts.
4. extruded 6061-T6 aluminum “C” channel with welded side plates.
5. mill finish 1100-0T alloy aluminum 1.6 mm (0.064”) flashing [uninsulated for concrete structure][insulated for steel deck.] applications. 6. EPDM end caps
[7. four 13 mm (1/2”) s.s. adhesive bolts per leg support.]
[8. four 13 mm (1/2”) s.s. bolts through concrete slab per leg.]
[9 two 13 mm (1/2”) s.s “J” bolts for OWSJ structure per leg.]
[10. four 13 mm (1/2”) s.s. bolts around beam per leg support.]
[11. bituminous painted flashing deck flange.]
[12. PVC coated flashing deck flange.]
SPECIFICATION (BUR over Concrete or Steel Deck)
Spec Note: Short form clauses only are shown here. See long form 3-Part specification at end of section. Square brackets [] indicate an option to be selected/inserted by the specifier. Remove brackets and unused options before printing.
Acceptable roof pipe support manufacturer: Altra Metal Specialties Inc., 222 Islington Avenue, Unit 3, Toronto, ON M8V 3W7; Tel: 416-503-9453 or 1-888-472-5872; Fax: 416-503-8963; Email: info@altrametal.ca; Web: www.altrametal.ca.

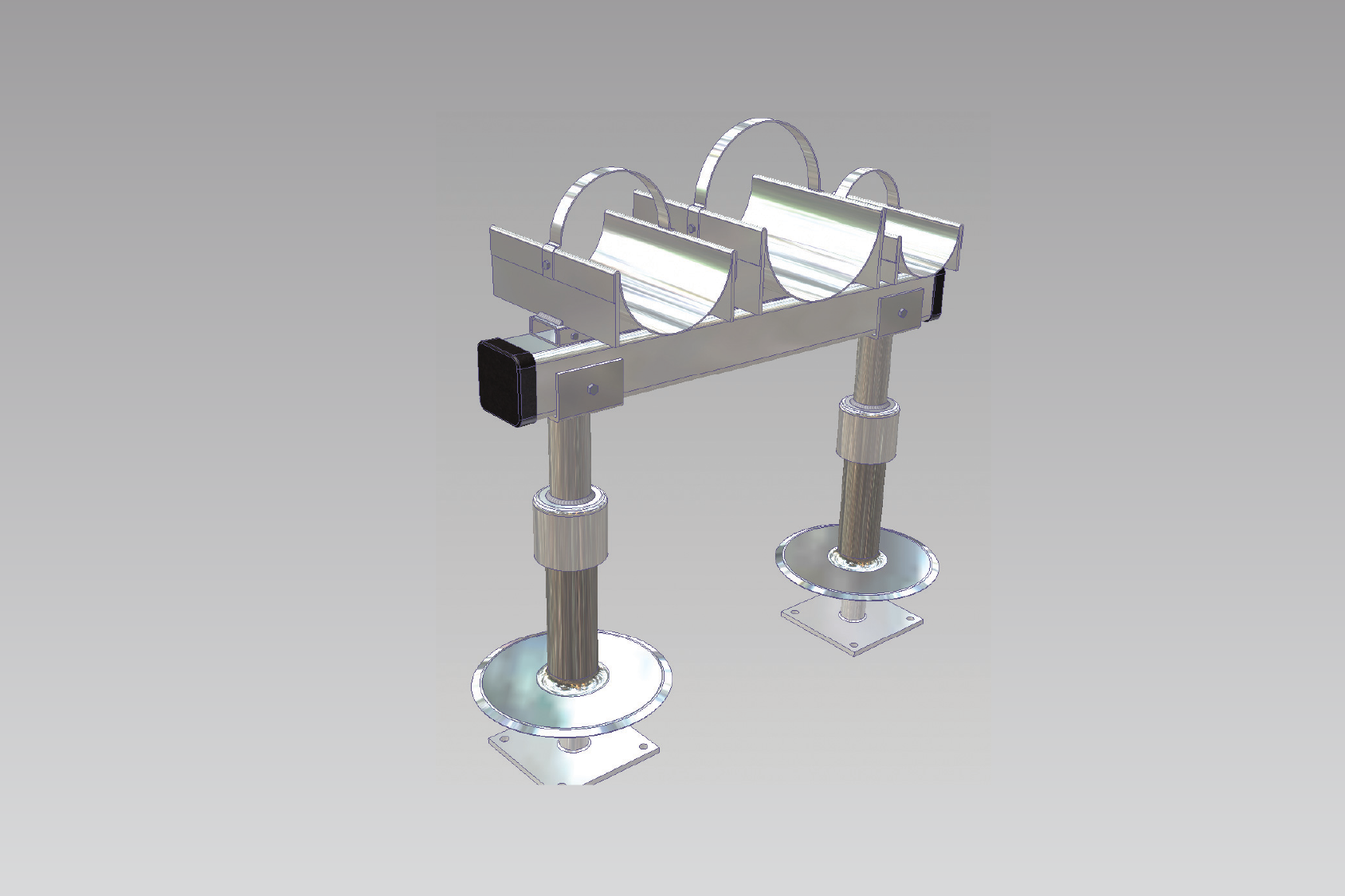

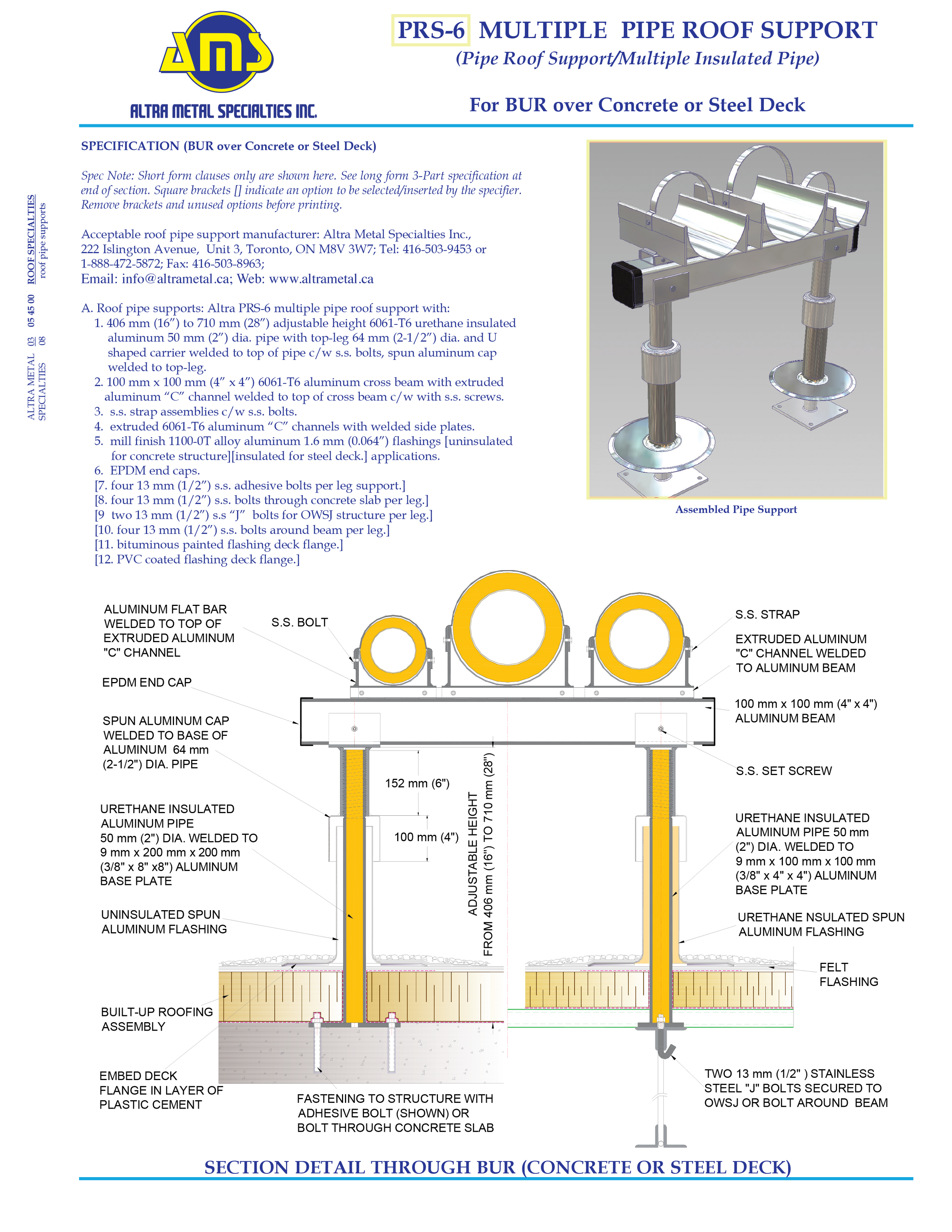

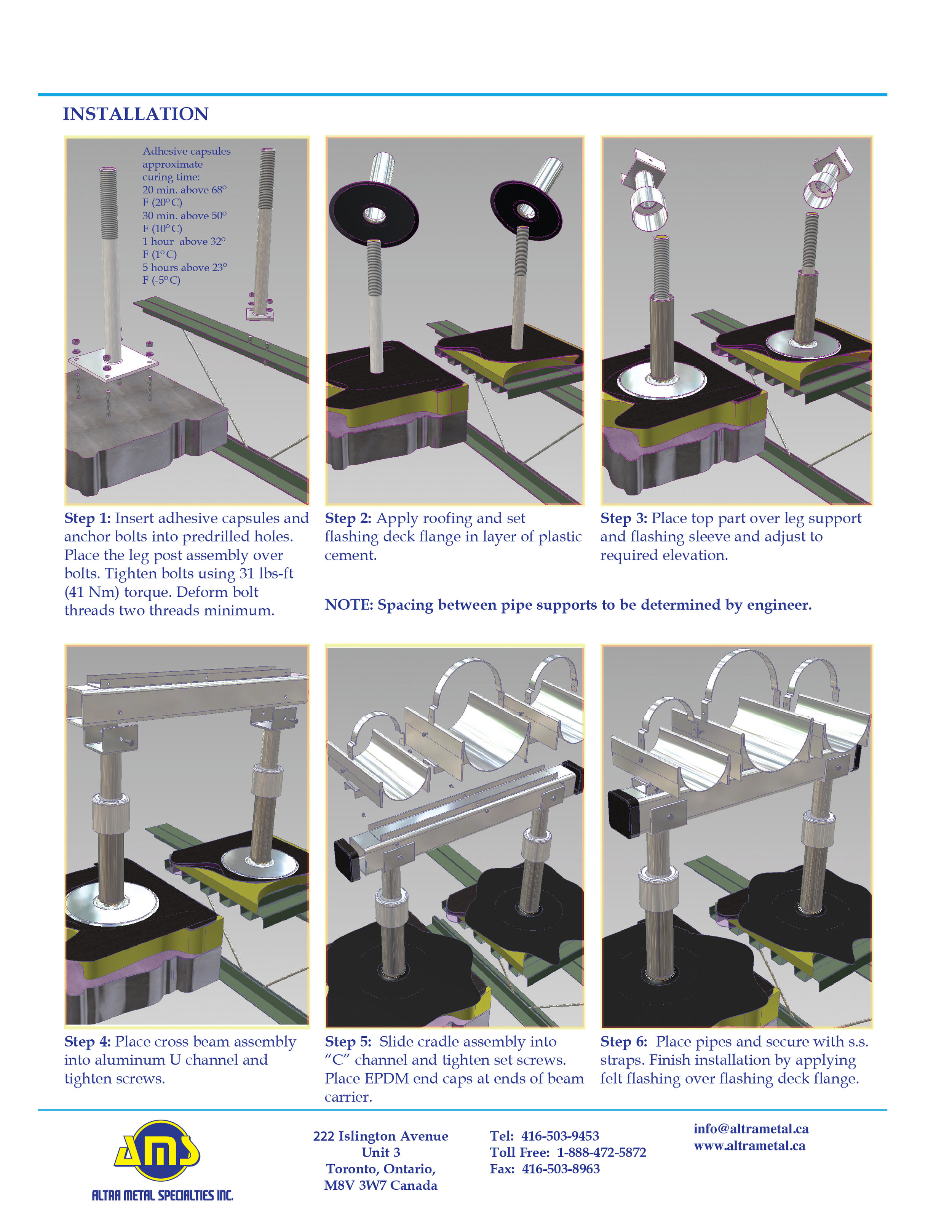

A. Roof pipe supports: Altra PRS-6 multiple pipe roof support with:
1. 406 mm (16”) to 710 mm (28”) adjustable height 6061-T6 urethane insulated
aluminum 50 mm (2”) dia. pipe with top-leg 64 mm (2-1/2”) dia. and U shaped carrier welded to top of pipe c/w s.s. bolts, spun aluminum cap welded to top-leg.
2. 100 mm x 100 mm (4” x 4”) 6061-T6 aluminum cross beam with extruded aluminum “C” channel welded to top of cross beam c/w with s.s. screws.
3. s.s. strap assemblies c/w s.s. bolts.
4. extruded 6061-T6 aluminum “C” channels with welded side plates.
5. mill finish 1100-0T alloy aluminum 1.6 mm (0.064”) flashings [uninsulated
for concrete structure][insulated for steel deck.] applications. 6. EPDM end caps.
[7. four 13 mm (1/2”) s.s. adhesive bolts per leg support.]
[8. four 13 mm (1/2”) s.s. bolts through concrete slab per leg.] [9 two 13 mm (1/2”) s.s “J” bolts for OWSJ structure per leg.] [10. four 13 mm (1/2”) s.s. bolts around beam per leg.]
[11. bituminous painted flashing deck flange.]
[12. PVC coated flashing deck flange.]
SPECIFICATION (BUR over Concrete or Steel Deck)
Spec Note: Short form clauses only are shown here. See long form 3-Part specification at end of section. Square brackets [] indicate an option to be selected/inserted by the specifi- er. Remove brackets and unused options before printing.
Acceptable roof pipe support manufacturer: Altra Metal Specialties Inc., 222 Islington Avenue, Unit 3, Toronto, ON M8V 3W7; Tel: 416-503-9453 or 1-888-472-5872; Fax: 416-503-8963; Email: info@altrametal.ca; Web: www.altrametal.ca.

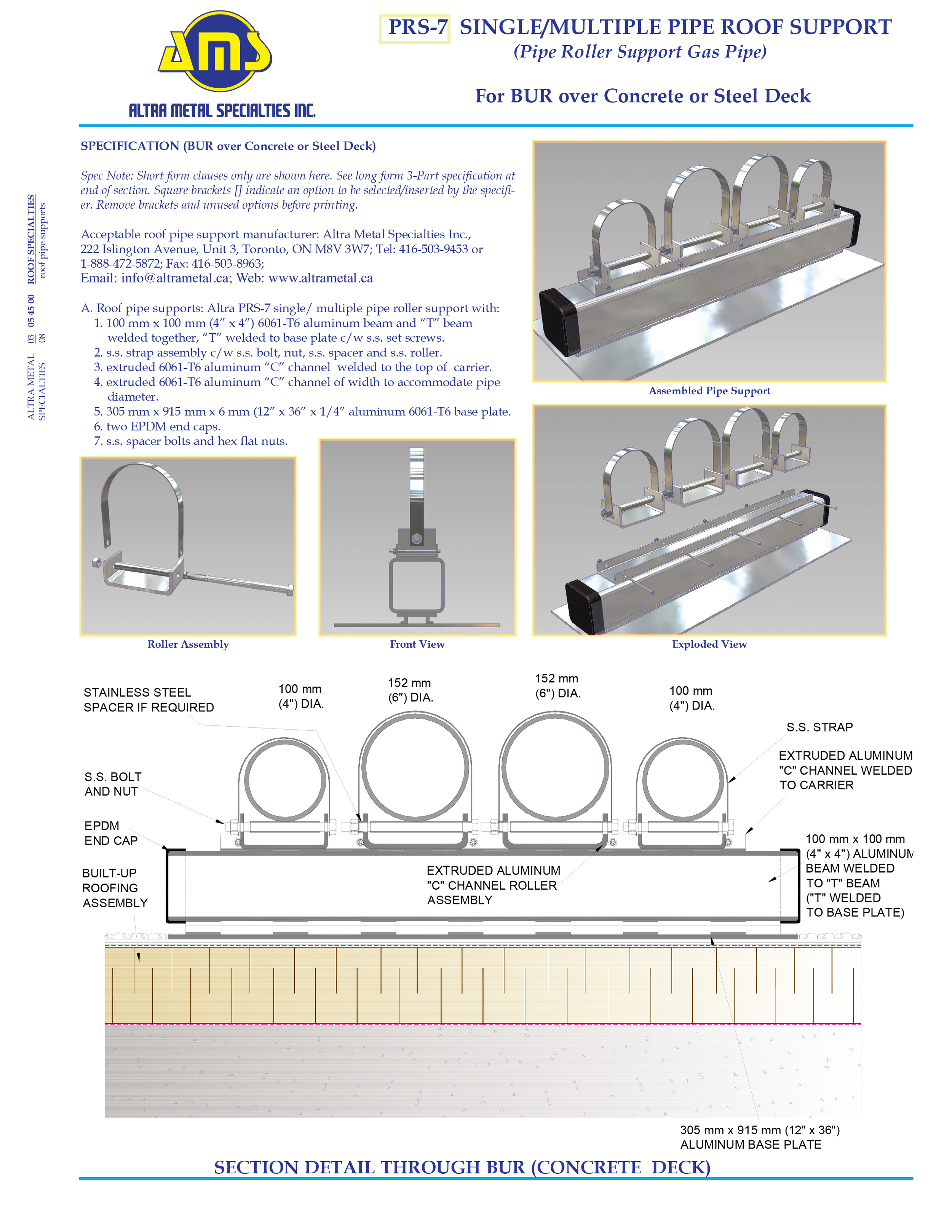

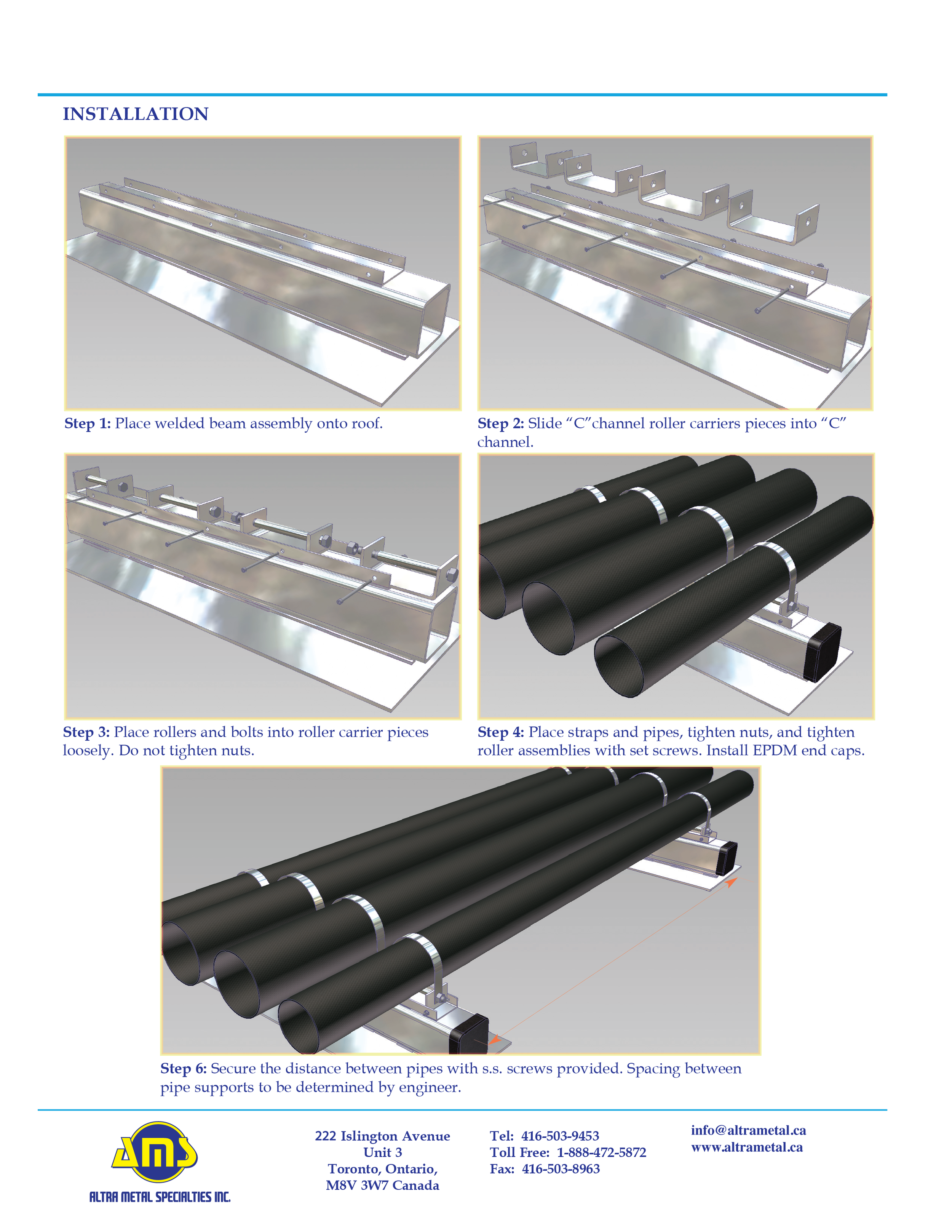

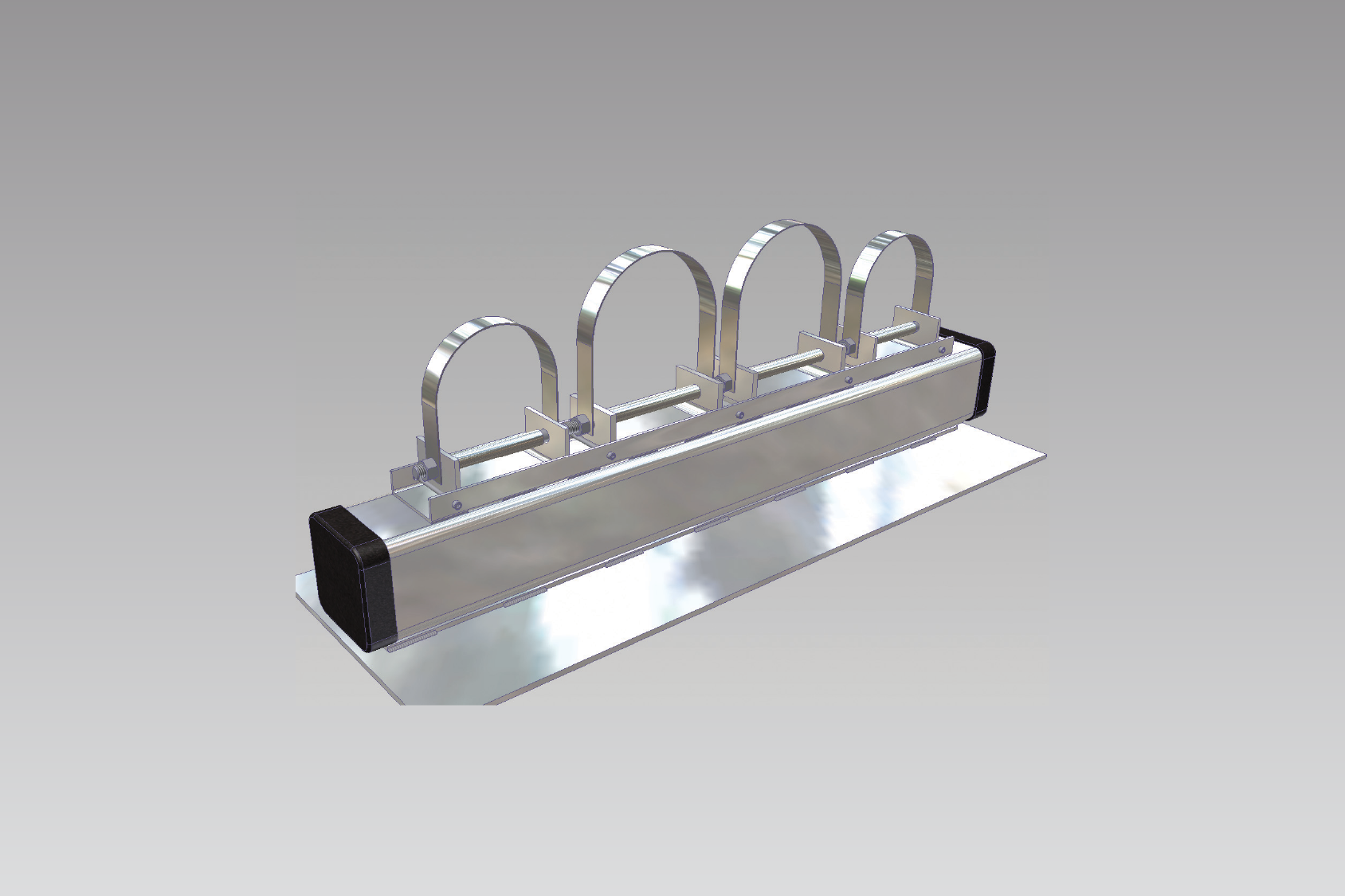

A. Roof pipe supports: Altra PRS-7 single/ multiple pipe roller support with: 1. 100 mm x 100 mm (4” x 4”) 6061-T6 aluminum beam and “T” beam
welded together, “T” welded to base plate c/w s.s. set screws.
2. s.s. strap assembly c/w s.s. bolt, nut, s.s. spacer and s.s. roller.
3. extruded 6061-T6 aluminum “C” channel welded to the top of carrier. 4. extruded 6061-T6 aluminum “C” channel of width to accommodate pipe
diameter.
5. 305 mm x 915 mm x 6 mm (12” x 36” x 1/4” aluminum 6061-T6 base plate. 6. two EPDM end caps.
7. s.s. spacer bolts and hex flat nuts.
