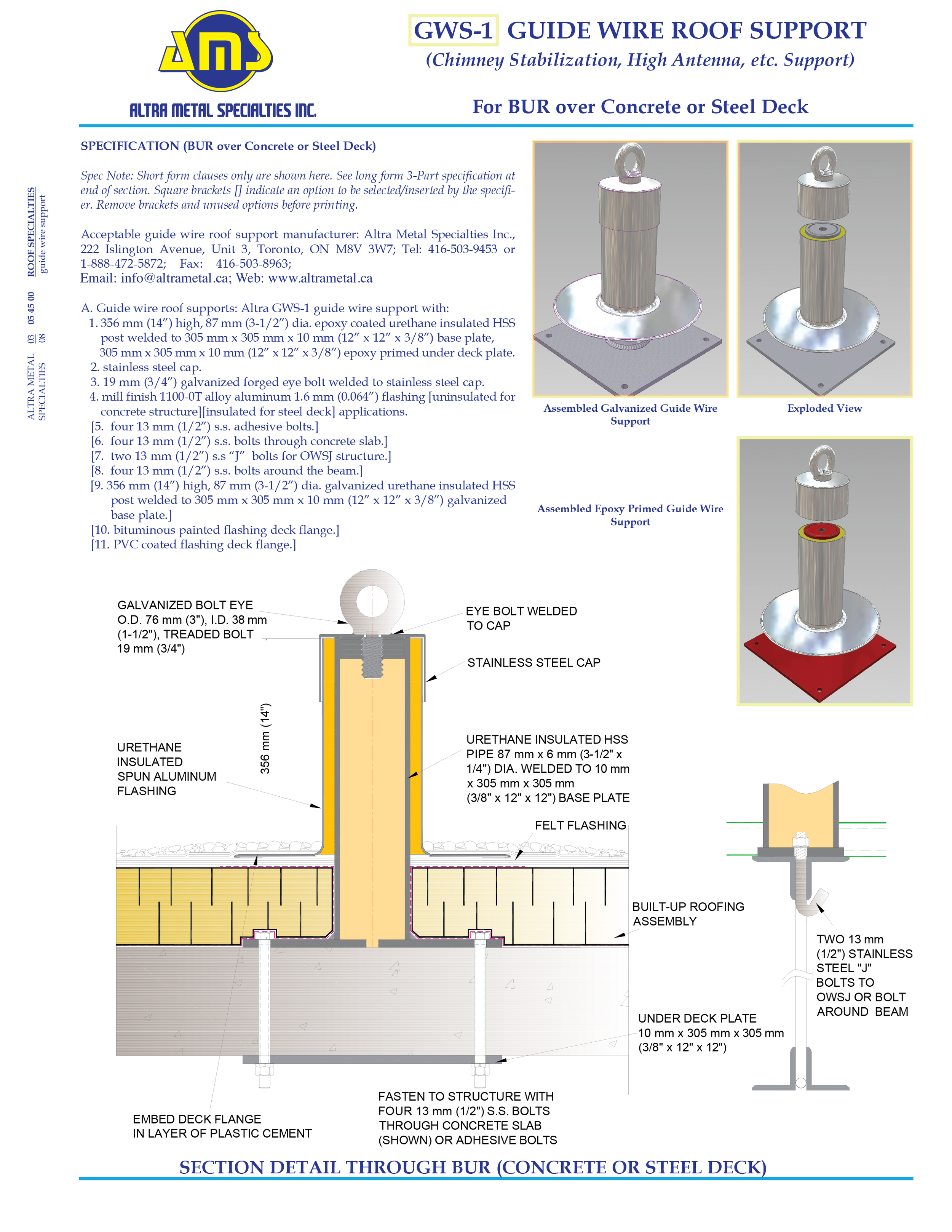

SPECIFICATION (BUR over Concrete or Steel Deck)
Spec Note: Short form clauses only are shown here. See long form 3-Part specification at end of section. Square brackets [] indicate an option to be selected/inserted by the specifi- er. Remove brackets and unused options before printing.
Acceptable guide wire roof support manufacturer: Altra Metal Specialties Inc., 222 Islington Avenue, Unit 3, Toronto, ON M8V 3W7; Tel: 416-503-9453 or 1-888-472-5872; Fax: 416-503-8963; Email: info@altrametal.ca; Web: www.altrametal.ca.

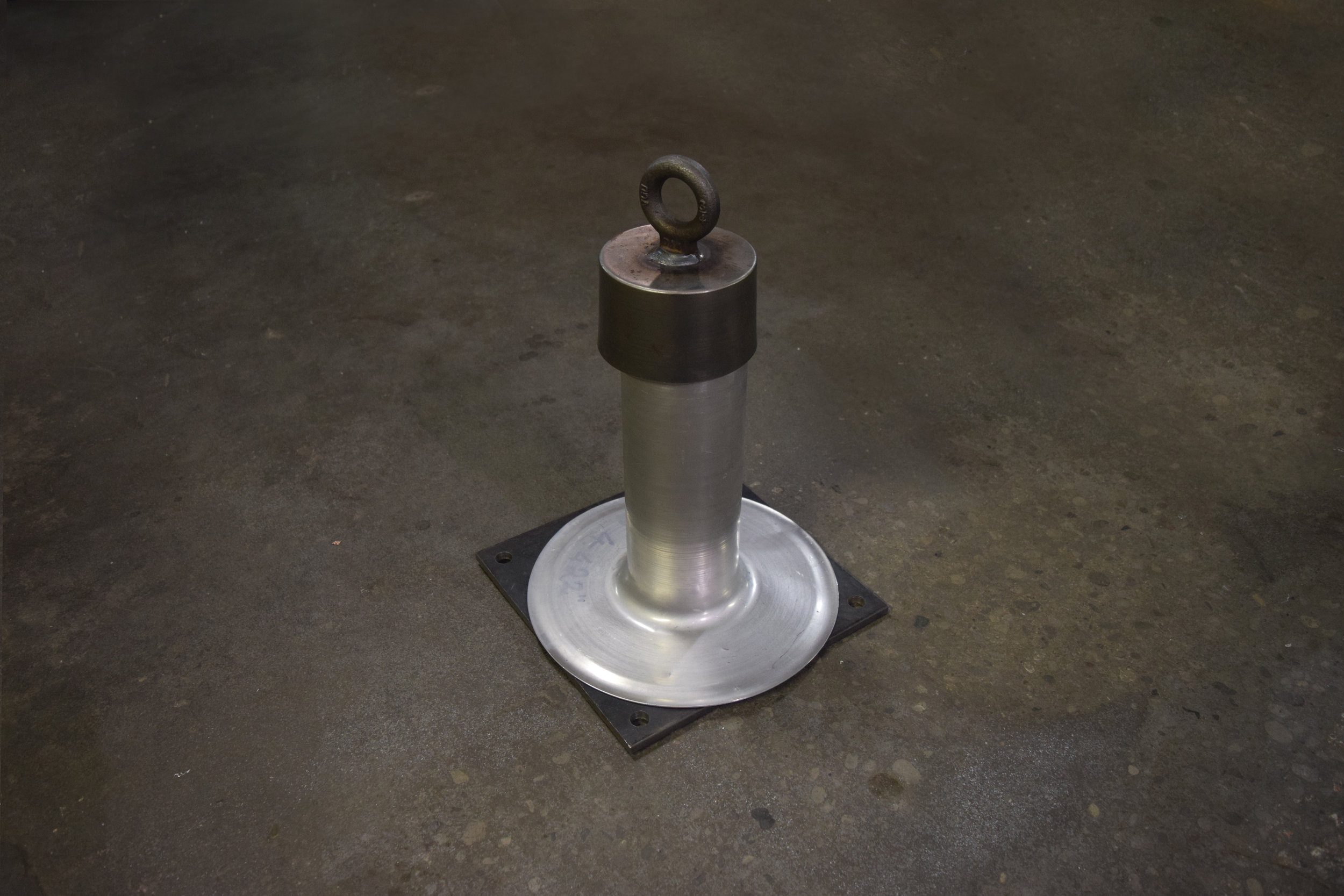

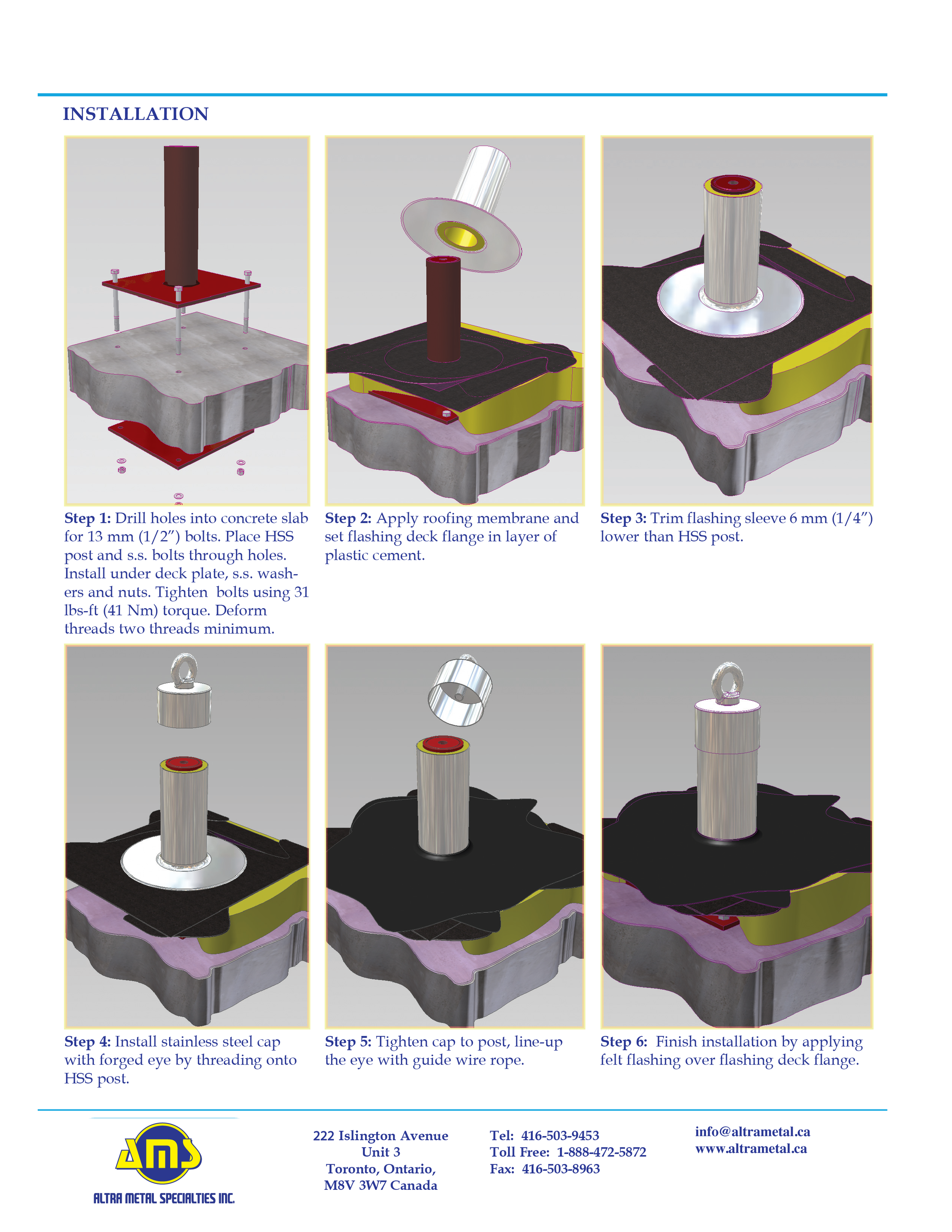

A. Guide wire roof supports: Altra GWS-1 guide wire support with:
1. 356 mm (14”) high, 87 mm (3-1/2”) dia. epoxy coated urethane insulated HSS
post welded to 305 mm x 305 mm x 10 mm (12” x 12” x 3/8”) base plate,
305 mm x 305 mm x 10 mm (12” x 12” x 3/8”) epoxy primed under deck plate. 2. stainless steel cap.
3. 19 mm (3/4”) galvanized forged eye bolt welded to stainless steel cap.
4. mill finish 1100-0T alloy aluminum 1.6 mm (0.064”) flashing [uninsulated for
concrete structure][insulated for steel deck] applications. [5. four 13 mm (1/2”) s.s. adhesive bolts.]
[6. four 13 mm (1/2”) s.s. bolts through concrete slab.]
[7. two 13 mm (1/2”) s.s “J” bolts for OWSJ structure.] [8. four 13 mm (1/2”) s.s. bolts around the beam.]
[9. 356 mm (14”) high, 87 mm (3-1/2”) dia. galvanized urethane insulated HSS post welded to 305 mm x 305 mm x 10 mm (12” x 12” x 3/8”) galvanized base plate.]
[10. bituminous painted flashing deck flange.] [11. PVC coated flashing deck flange.]
SPECIFICATION (BUR over Concrete or Steel Deck)
Spec Note: Short form clauses only are shown here. See long form 3-Part specification at end of section. Square brackets [] indicate an option to be selected/inserted by the specifi- er. Remove brackets and unused options before printing.
Acceptable modular roof support manufacturer: Altra Metal Specialties Inc., 222 Islington Avenue, Unit 3, Toronto, ON M8V 3W7; Tel: 416-503-9453 or 1-888-472-5872; Fax: 416-503-8963; Email: info@altrametal.ca; Web: www.altrametal.ca.

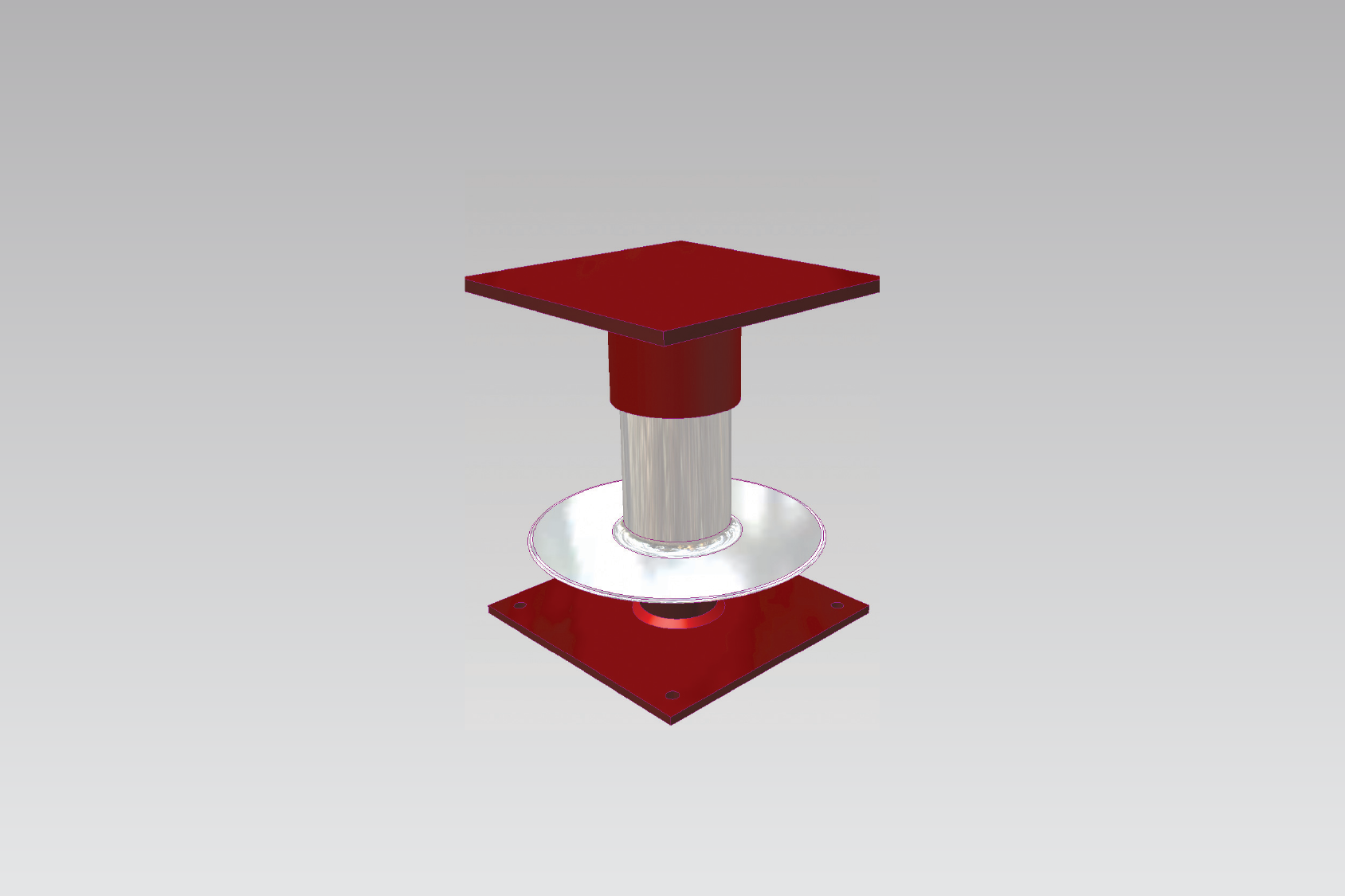

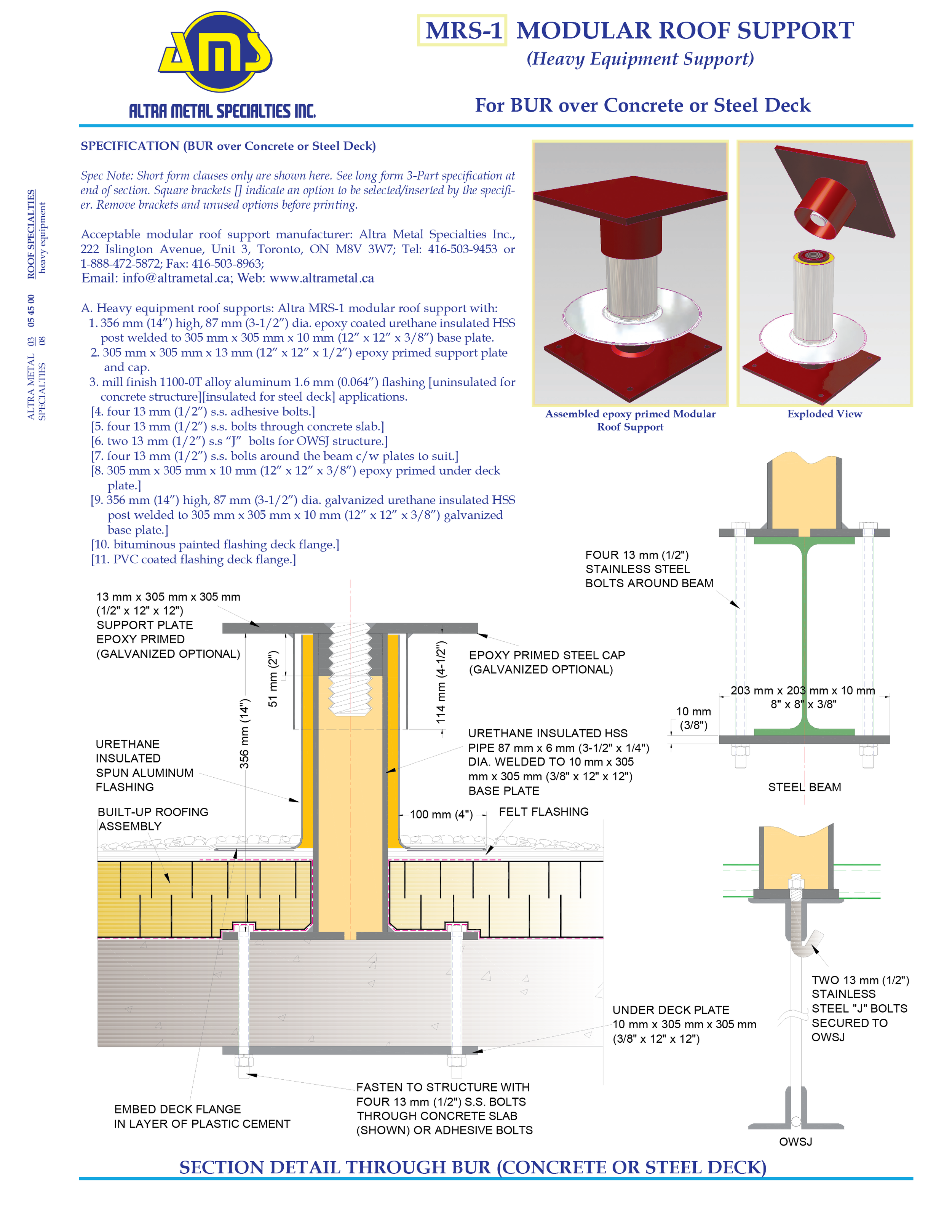

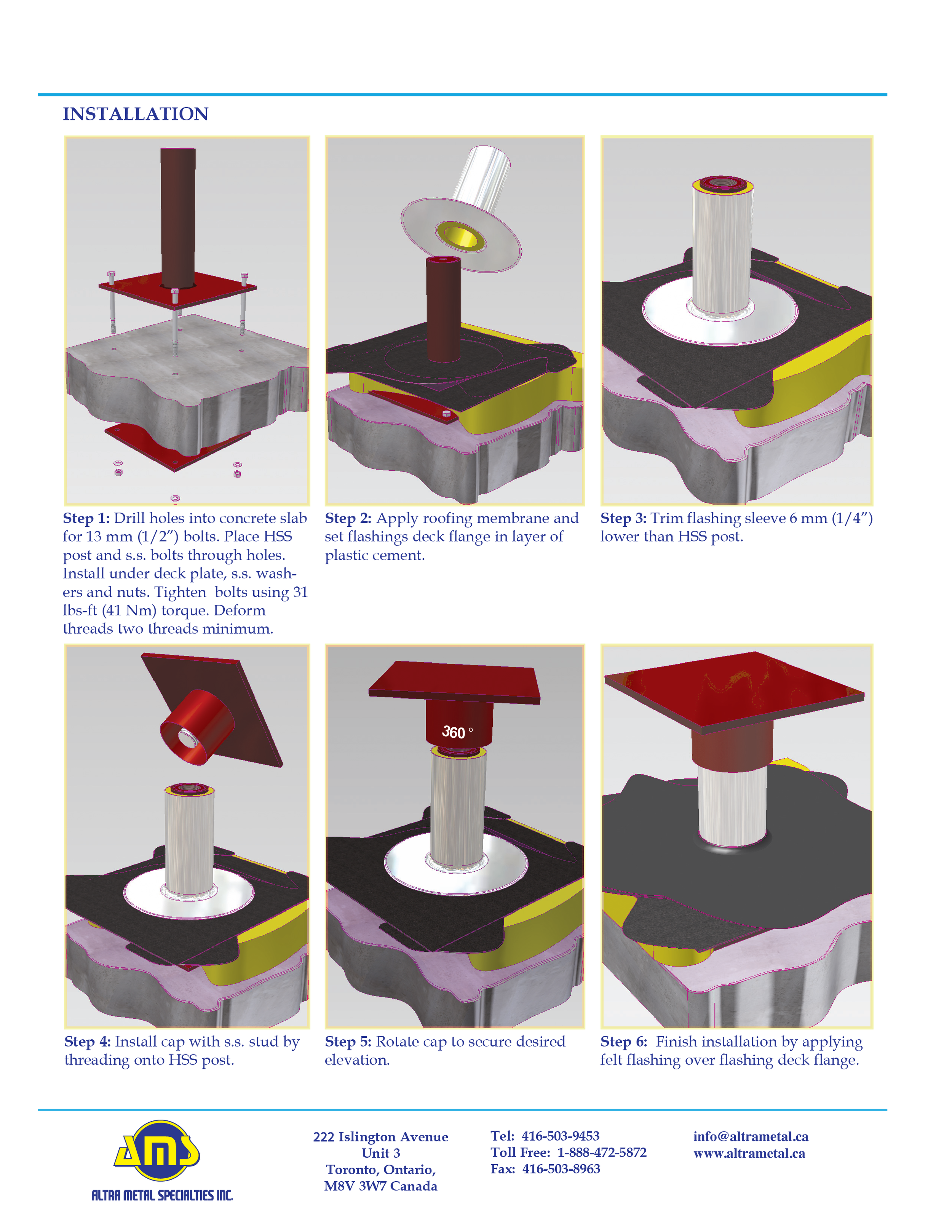

A. Heavy equipment roof supports: Altra MRS-1 modular roof support with:
1. 356 mm (14”) high, 87 mm (3-1/2”) dia. epoxy coated urethane insulated HSS
post welded to 305 mm x 305 mm x 10 mm (12” x 12” x 3/8”) base plate.
2. 305 mm x 305 mm x 13 mm (12” x 12” x 1/2”) epoxy primed support plate
and cap.
3. mill finish 1100-0T alloy aluminum 1.6 mm (0.064”) flashing [uninsulated for
concrete structure][insulated for steel deck] applications.
[4. four 13 mm (1/2”) s.s. adhesive bolts.]
[5. four 13 mm (1/2”) s.s. bolts through concrete slab.]
[6. two 13 mm (1/2”) s.s “J” bolts for OWSJ structure.]
[7. four 13 mm (1/2”) s.s. bolts around the beam c/w plates to suit.]
[8. 305 mm x 305 mm x 10 mm (12” x 12” x 3/8”) epoxy primed under deck
plate.]
[9. 356 mm (14”) high, 87 mm (3-1/2”) dia. galvanized urethane insulated HSS
post welded to 305 mm x 305 mm x 10 mm (12” x 12” x 3/8”) galvanized
base plate.]
[10. bituminous painted flashing deck flange.] [11. PVC coated flashing deck flange.]
SPECIFICATION (BUR over Concrete or Steel Deck)
Spec Note: Short form clauses only are shown here. See long form 3-Part specification at end of section. Square brackets [] indicate an option to be selected/inserted by the specifi- er. Remove brackets and unused options before printing.
Acceptable modular roof support manufacturer: Altra Metal Specialties Inc., 222 Islington Avenue, Unit 3, Toronto, ON M8V 3W7; Tel: 416-503-9453 or 1-888-472-5872; Fax: 416-503-8963; Email: info@altrametal.ca; Web: www.altrametal.ca.

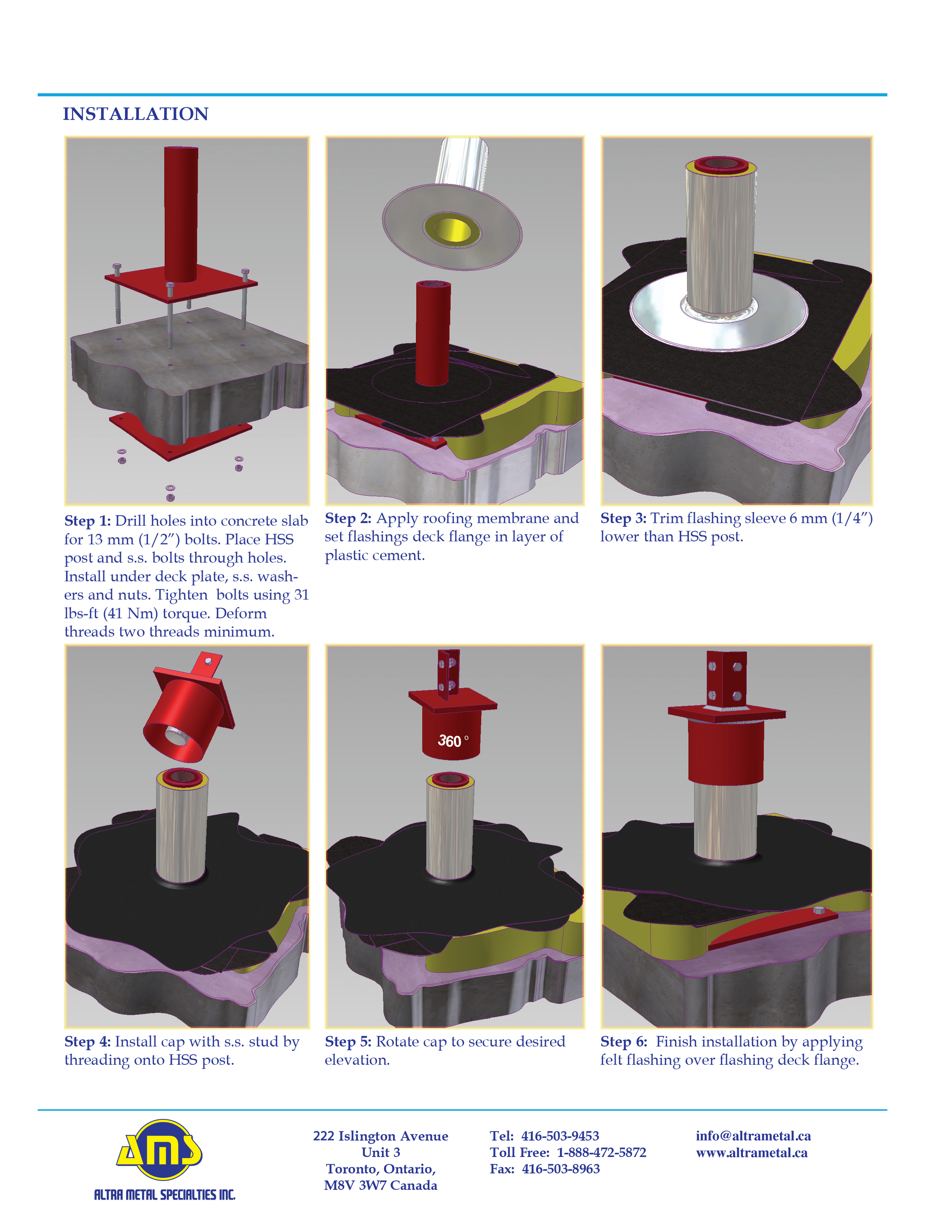

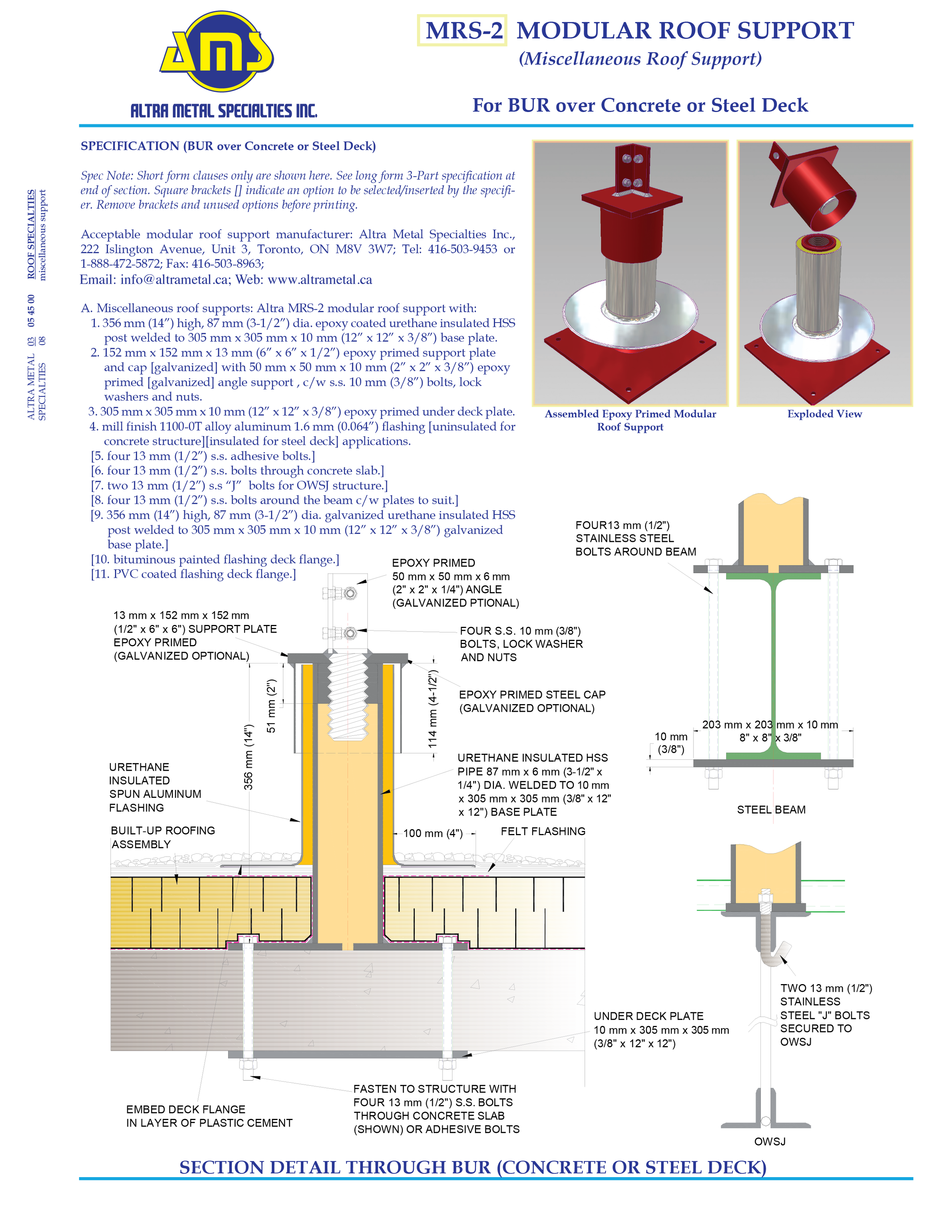

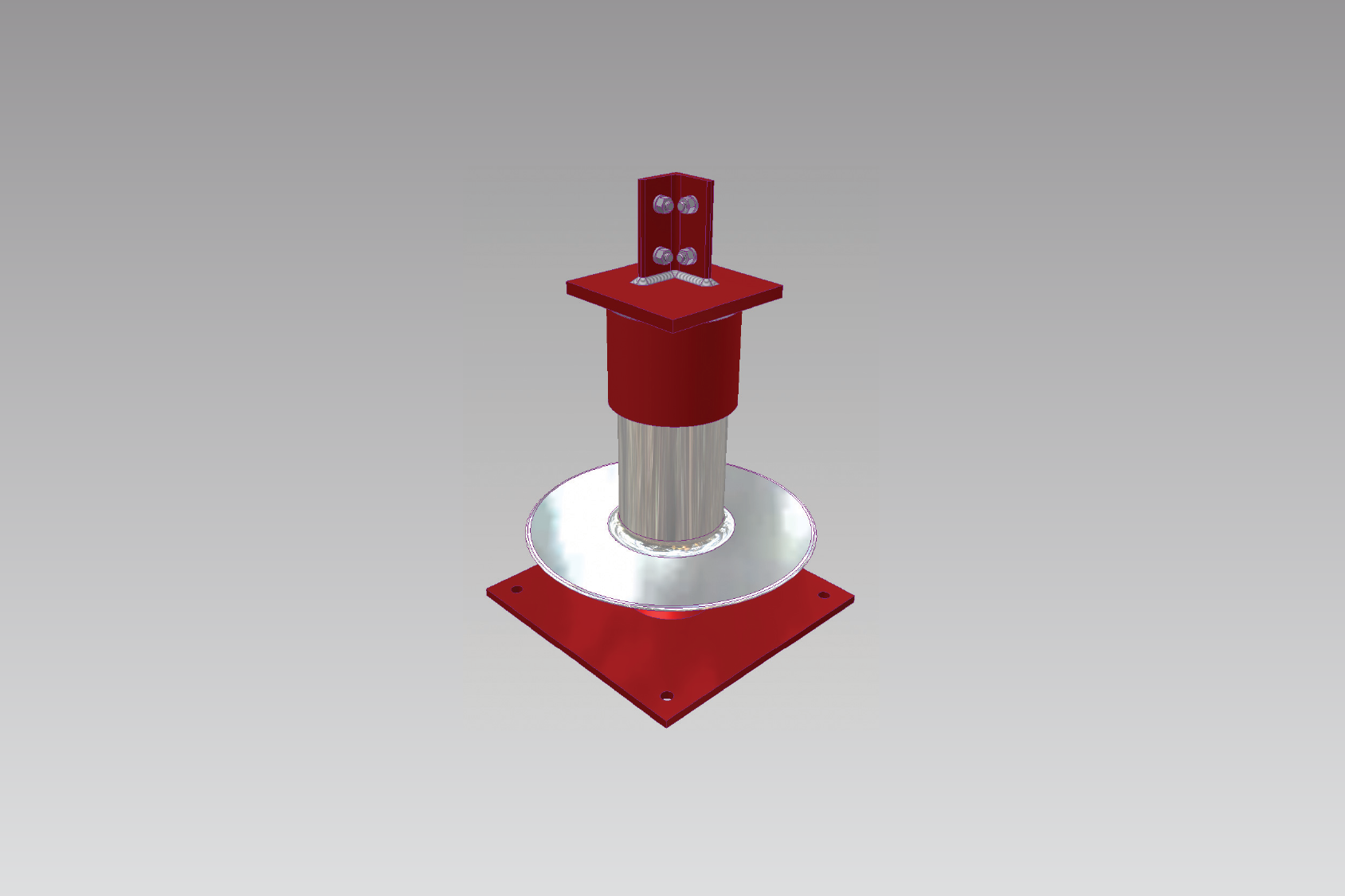

A. Miscellaneous roof supports: Altra MRS-2 modular roof support with:
1. 356 mm (14”) high, 87 mm (3-1/2”) dia. epoxy coated urethane insulated HSS
post welded to 305 mm x 305 mm x 10 mm (12” x 12” x 3/8”) base plate. 2. 152 mm x 152 mm x 13 mm (6” x 6” x 1/2”) epoxy primed support plate
and cap [galvanized] with 50 mm x 50 mm x 10 mm (2” x 2” x 3/8”) epoxy primed [galvanized] angle support , c/w s.s. 10 mm (3/8”) bolts, lock washers and nuts.
3. 305 mm x 305 mm x 10 mm (12” x 12” x 3/8”) epoxy primed under deck plate. 4. mill finish 1100-0T alloy aluminum 1.6 mm (0.064”) flashing [uninsulated for
concrete structure][insulated for steel deck] applications.
[5. four 13 mm (1/2”) s.s. adhesive bolts.]
[6. four 13 mm (1/2”) s.s. bolts through concrete slab.]
[7. two 13 mm (1/2”) s.s “J” bolts for OWSJ structure.]
[8. four 13 mm (1/2”) s.s. bolts around the beam c/w plates to suit.]
[9. 356 mm (14”) high, 87 mm (3-1/2”) dia. galvanized urethane insulated HSS
post welded to 305 mm x 305 mm x 10 mm (12” x 12” x 3/8”) galvanized base plate.]
Assembled Epoxy Primed Modular Roof Support
FOUR13 mm (1/2") STAINLESS STEEL BOLTS AROUND BEAM
Exploded View
[10. bituminous painted flashing deck flange.] [11. PVC coated flashing deck flange.]
SPECIFICATION (BUR over Concrete or Steel Deck)
Spec Note: Short form clauses only are shown here. See long form 3-Part specification at end of manual. Square brackets [] indicate an option to be selected/inserted by the speci- fier. Remove brackets and unused options before printing.
Acceptable modular roof support manufacturer: Altra Metal Specialties Inc., 222 Islington Avenue, Unit 3, Toronto, ON M8V 3W7; Tel: 416-503-9453 or 1-888-472-5872; Fax: 416-503-8963;Email: info@altrametal.ca; Web: www.altrametal.ca.

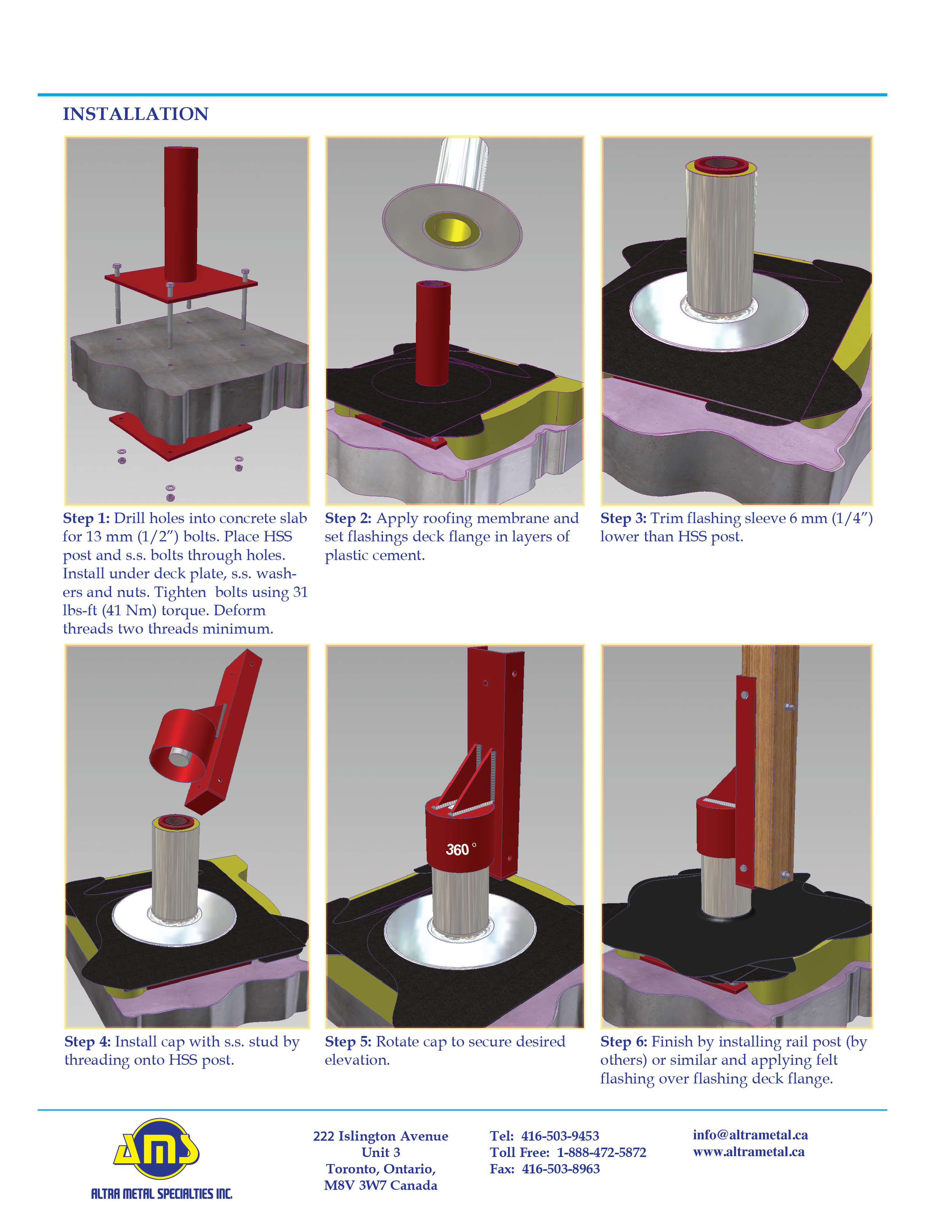

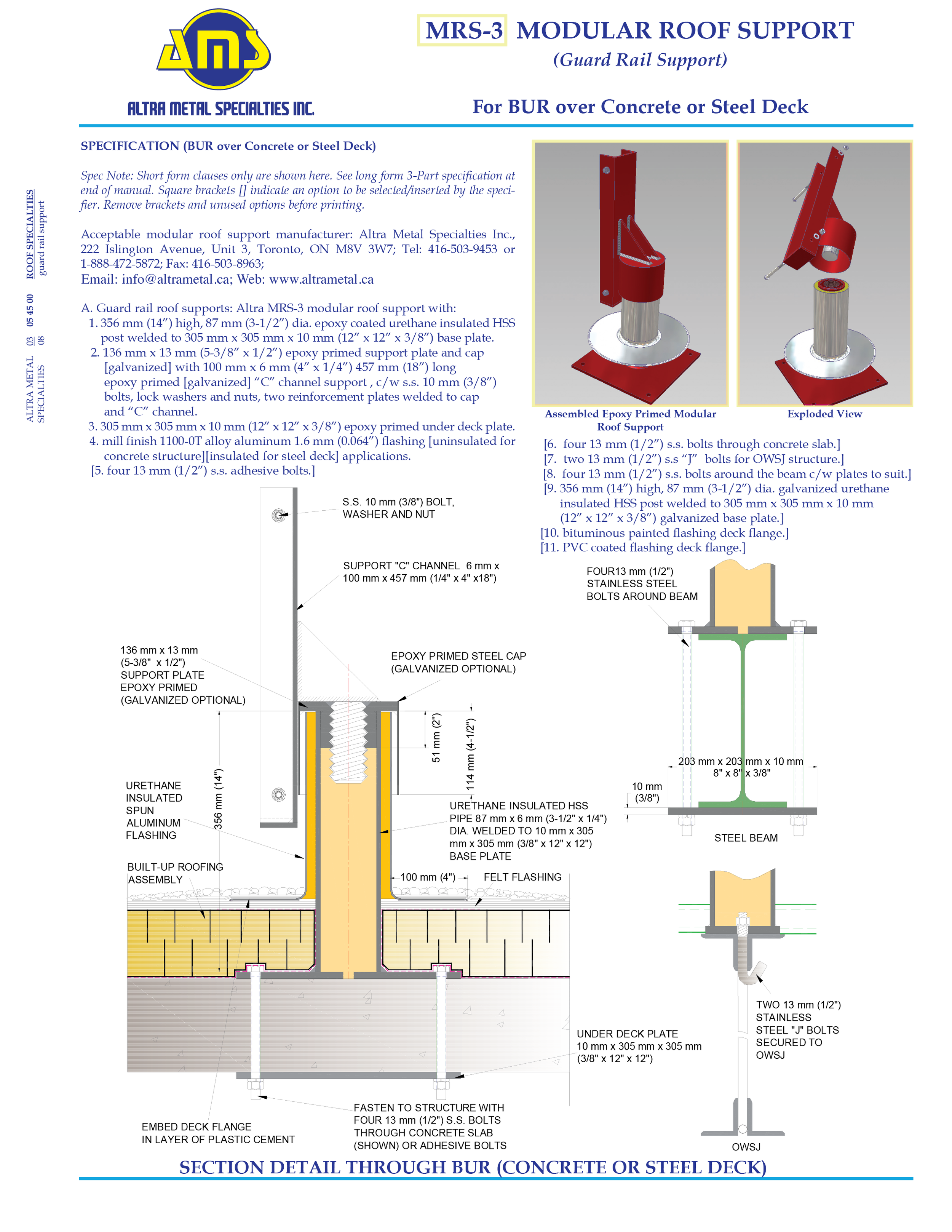

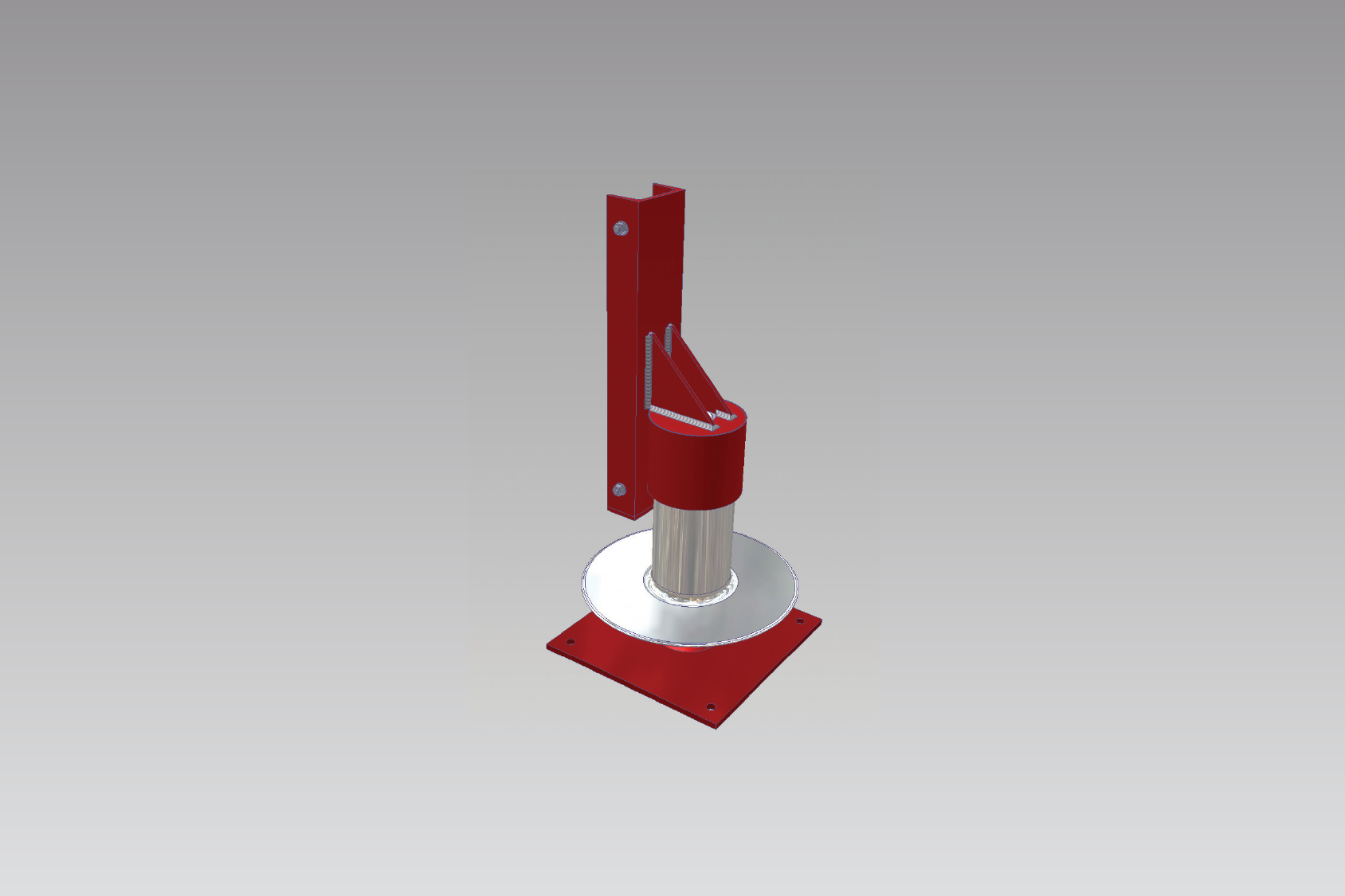

A. Guard rail roof supports: Altra MRS-3 modular roof support with:
1. 356 mm (14”) high, 87 mm (3-1/2”) dia. epoxy coated urethane insulated HSS
post welded to 305 mm x 305 mm x 10 mm (12” x 12” x 3/8”) base plate. 2. 136 mm x 13 mm (5-3/8” x 1/2”) epoxy primed support plate and cap
[galvanized] with 100 mm x 6 mm (4” x 1/4”) 457 mm (18”) long
epoxy primed [galvanized] “C” channel support , c/w s.s. 10 mm (3/8”) bolts, lock washers and nuts, two reinforcement plates welded to cap and “C” channel.
3. 305 mm x 305 mm x 10 mm (12” x 12” x 3/8”) epoxy primed under deck plate. 4. mill finish 1100-0T alloy aluminum 1.6 mm (0.064”) flashing [uninsulated for
concrete structure][insulated for steel deck] applications. [5. four 13 mm (1/2”) s.s. adhesive bolts.]
SPECIFICATION (BUR over Concrete or Steel Deck)
Spec Note: Short form clauses only are shown here. See long form 3-Part specification at end of section. Square brackets [] indicate an option to be selected/inserted by the specifi- er. Remove brackets and unused options before printing.
Acceptable modular roof support manufacturer: Altra Metal Specialties Inc., 222 Islington Avenue, Unit 3, Toronto, ON M8V 3W7; Tel: 416-503-9453 or 1-888-472-5872; Fax: 416-503-8963; Email: info@altrametal.ca; Web: www.altrametal.ca.

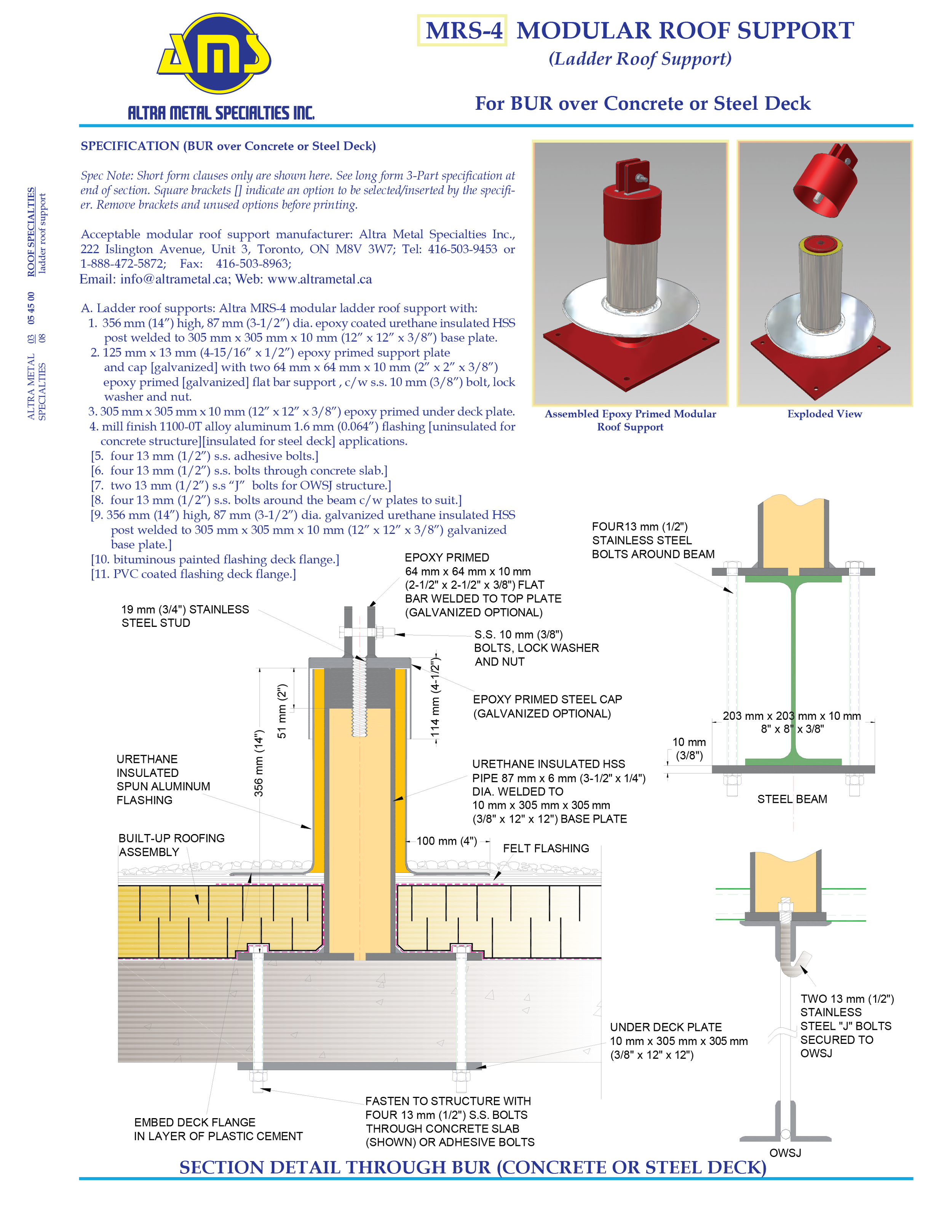

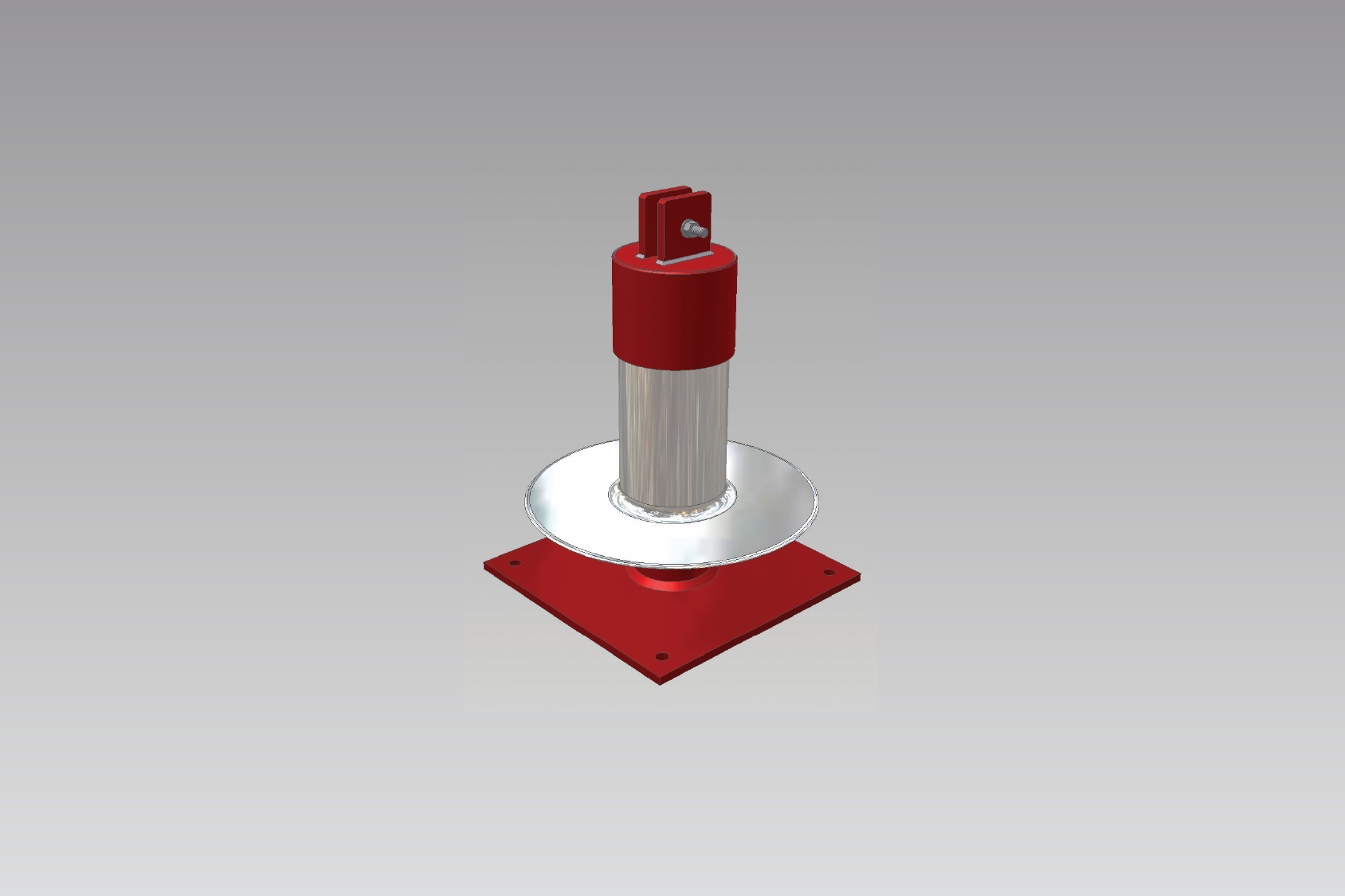

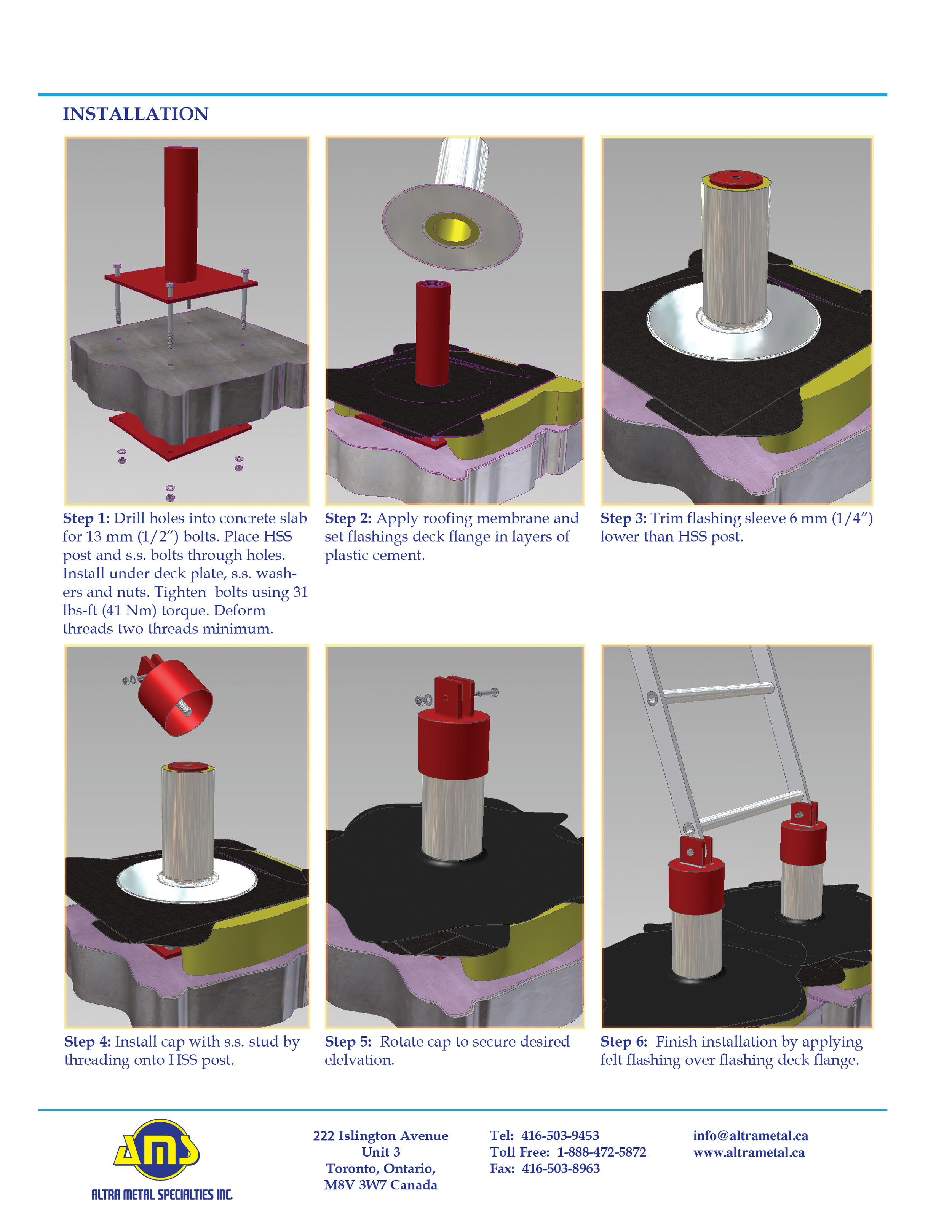

A. Ladder roof supports: Altra MRS-4 modular ladder roof support with:
1. 356 mm (14”) high, 87 mm (3-1/2”) dia. epoxy coated urethane insulated HSS
post welded to 305 mm x 305 mm x 10 mm (12” x 12” x 3/8”) base plate. 2. 125 mm x 13 mm (4-15/16” x 1/2”) epoxy primed support plate
and cap [galvanized] with two 64 mm x 64 mm x 10 mm (2” x 2” x 3/8”) epoxy primed [galvanized] flat bar support , c/w s.s. 10 mm (3/8”) bolt, lock washer and nut.
3. 305 mm x 305 mm x 10 mm (12” x 12” x 3/8”) epoxy primed under deck plate. 4. mill finish 1100-0T alloy aluminum 1.6 mm (0.064”) flashing [uninsulated for
concrete structure][insulated for steel deck] applications.
[5. four 13 mm (1/2”) s.s. adhesive bolts.]
[6. four 13 mm (1/2”) s.s. bolts through concrete slab.]
[7. two 13 mm (1/2”) s.s “J” bolts for OWSJ structure.]
[8. four 13 mm (1/2”) s.s. bolts around the beam c/w plates to suit.]
[9. 356 mm (14”) high, 87 mm (3-1/2”) dia. galvanized urethane insulated HSS
post welded to 305 mm x 305 mm x 10 mm (12” x 12” x 3/8”) galvanized
Assembled Epoxy Primed Modular Roof Support
Exploded View
base plate.]
[10. bituminous painted flashing deck flange.] [11. PVC coated flashing deck flange.]
SPECIFICATION (BUR over Concrete or Steel Deck)
Spec Note: Short form clauses only are shown here. See long form 3-Part specification at end of section. Square brackets [] indicate an option to be selected/inserted by the specifier. Remove brackets and unused options before printing.
Acceptable walkway, platform support manufacturer: Altra Metal Specialties Inc., 222 Islington Avenue, Unit 3, Toronto, ON M8V 3W7; Tel: 416-503-9453 or 1-888-472-5872; Fax: 416-503-8963; Email: info@altrametal.ca; Web: www.altrametal.ca.

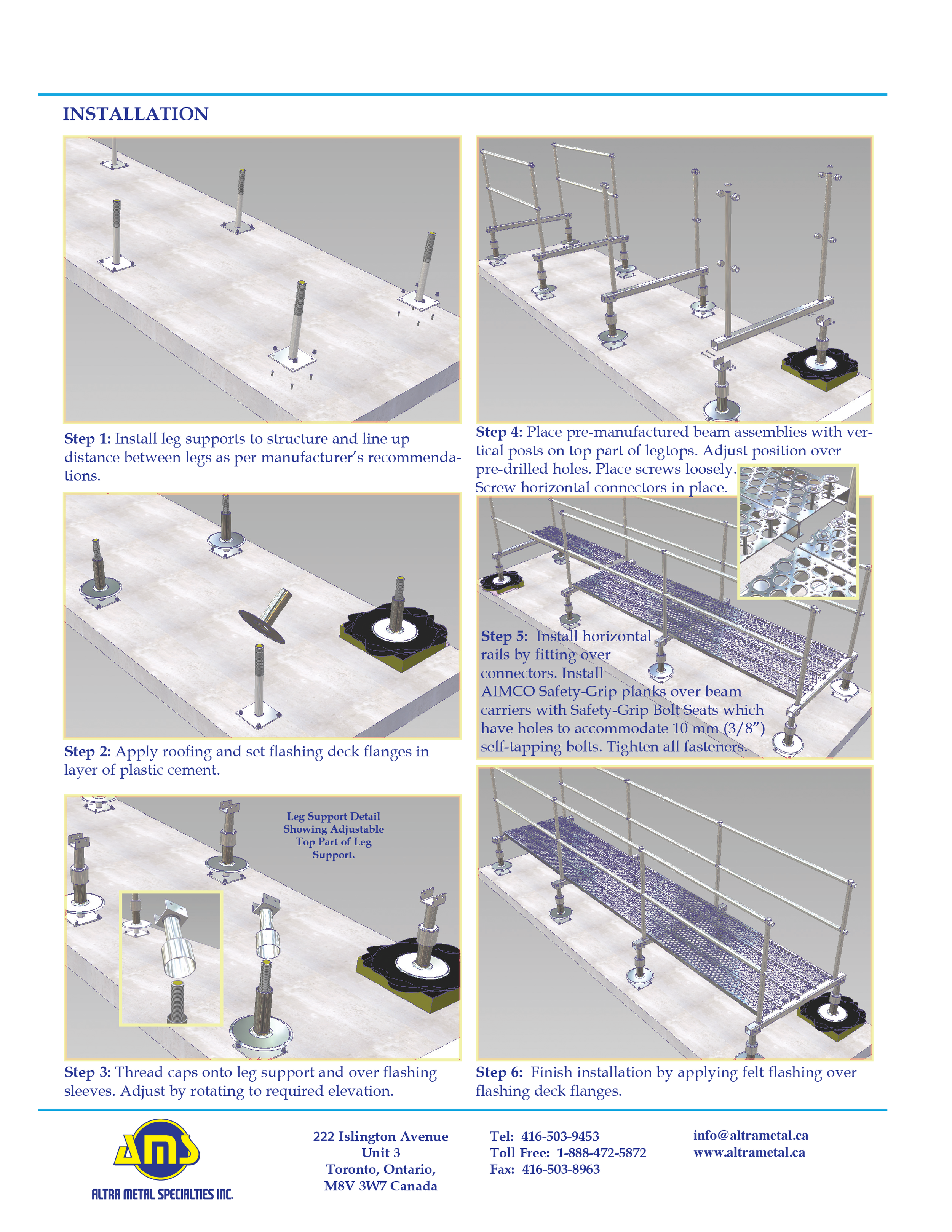

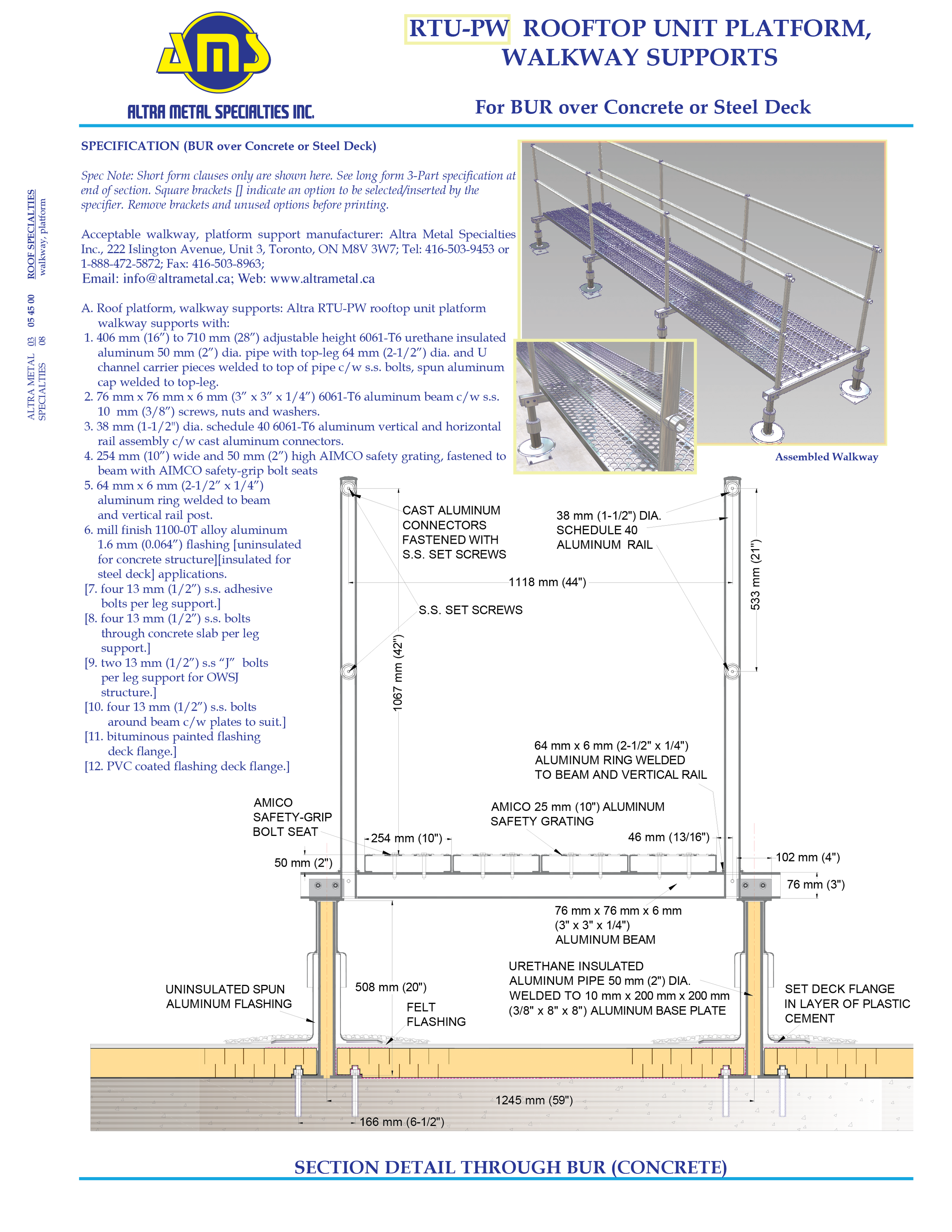

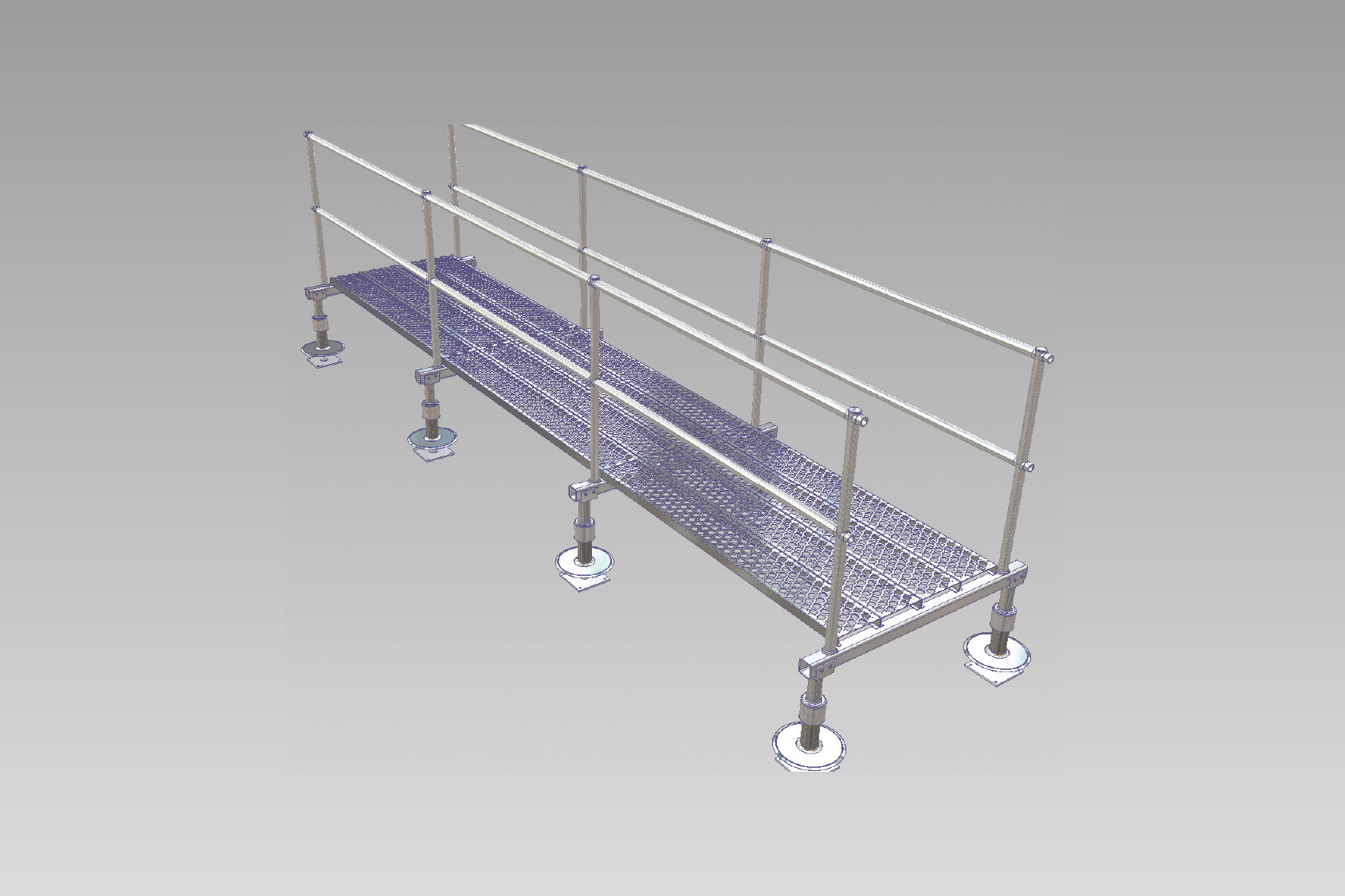

A. Roof platform, walkway supports: Altra RTU-PW rooftop unit platform walkway supports with:
1. 406 mm (16”) to 710 mm (28”) adjustable height 6061-T6 urethane insulated aluminum 50 mm (2”) dia. pipe with top-leg 64 mm (2-1/2”) dia. and U channel carrier pieces welded to top of pipe c/w s.s. bolts, spun aluminum cap welded to top-leg.
2. 76 mm x 76 mm x 6 mm (3” x 3” x 1/4”) 6061-T6 aluminum beam c/w s.s. 10 mm (3/8”) screws, nuts and washers.
3. 38 mm (1-1/2") dia. schedule 40 6061-T6 aluminum vertical and horizontal rail assembly c/w cast aluminum connectors.
4. 254 mm (10”) wide and 50 mm (2”) high AIMCO safety grating, fastened to beam with AIMCO safety-grip bolt seats
5. 64 mm x 6 mm (2-1/2” x 1/4”) aluminum ring welded to beam and vertical rail post.
6. mill finish 1100-0T alloy aluminum 1.6 mm (0.064”) flashing [uninsulated for concrete structure][insulated for steel deck] applications.
[7. four 13 mm (1/2”) s.s. adhesive bolts per leg support.]
[8. four 13 mm (1/2”) s.s. bolts through concrete slab per leg support.]
[9. two 13 mm (1/2”) s.s “J” bolts per leg support for OWSJ structure.]
[10. four 13 mm (1/2”) s.s. bolts around beam c/w plates to suit.]
[11. bituminous painted flashing deck flange.]
[12. PVC coated flashing deck flange.]
SPECIFICATION (BUR over Concrete or Steel Deck)
Spec Note: Short form clauses only are shown here. See long form 3-Part specification at end of section. Square brackets [] indicate
an option to be selected/inserted by the specifier. Remove brackets and unused options before printing.
Acceptable safety grating crossover stairs support manufacturer: Altra Metal Specialties Inc., 222 Islington Avenue, Unit 3, Toronto, ON M8V 3W7;
Tel: 416-503-9453 or 1-888-472-5872; Fax: 416-503-8963; Email: info@altrametal.ca; Web: www.altrametal.ca.

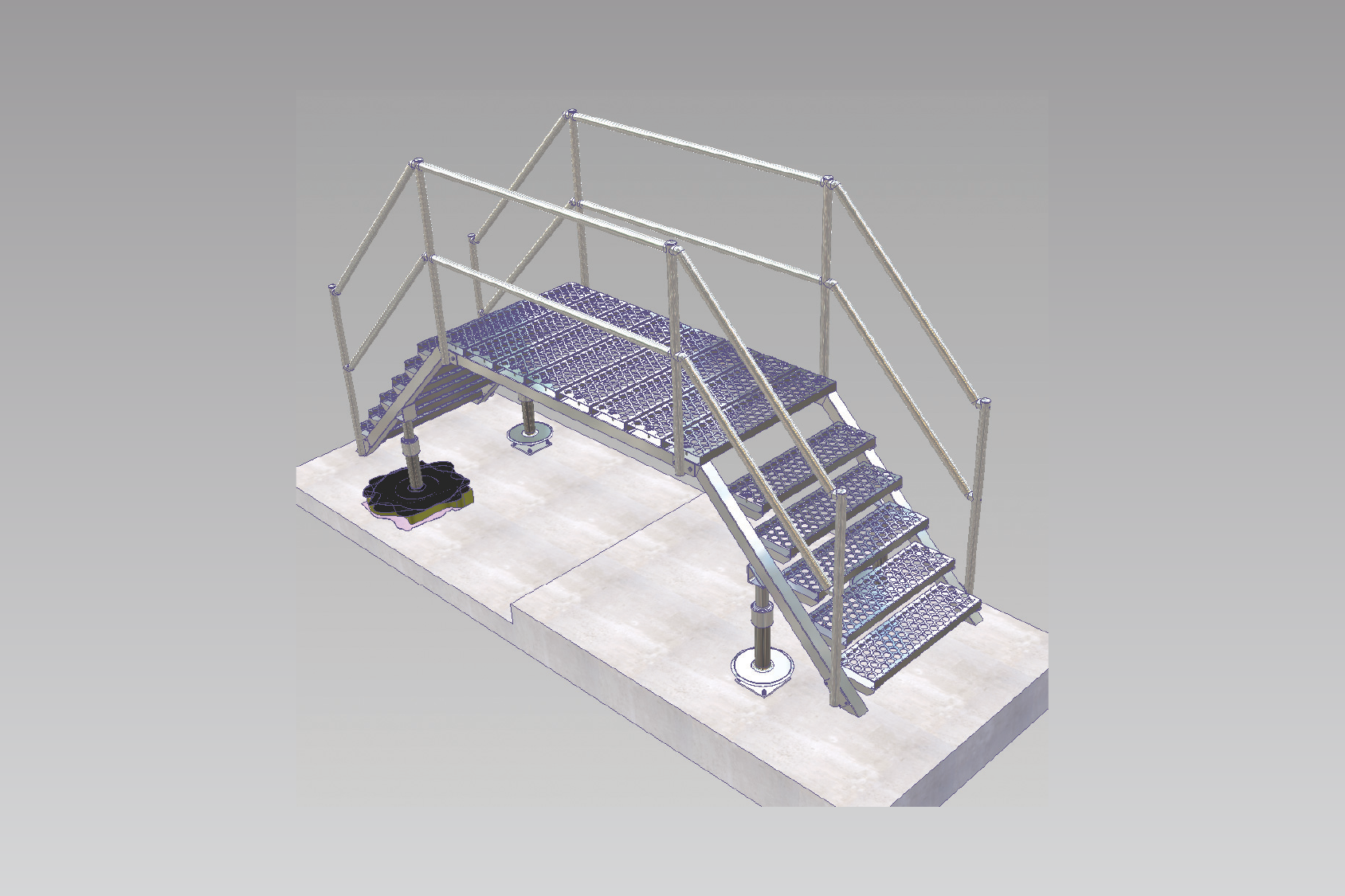

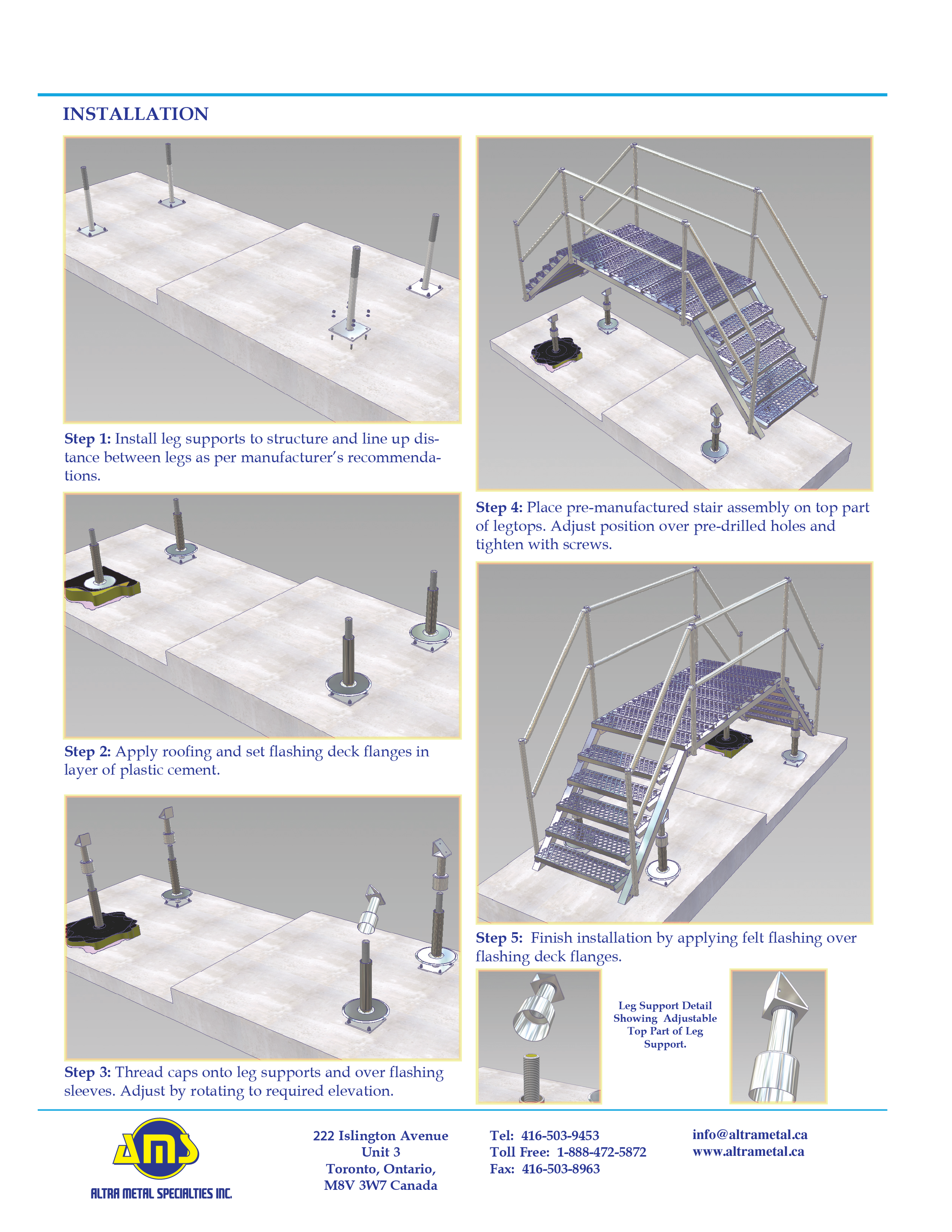

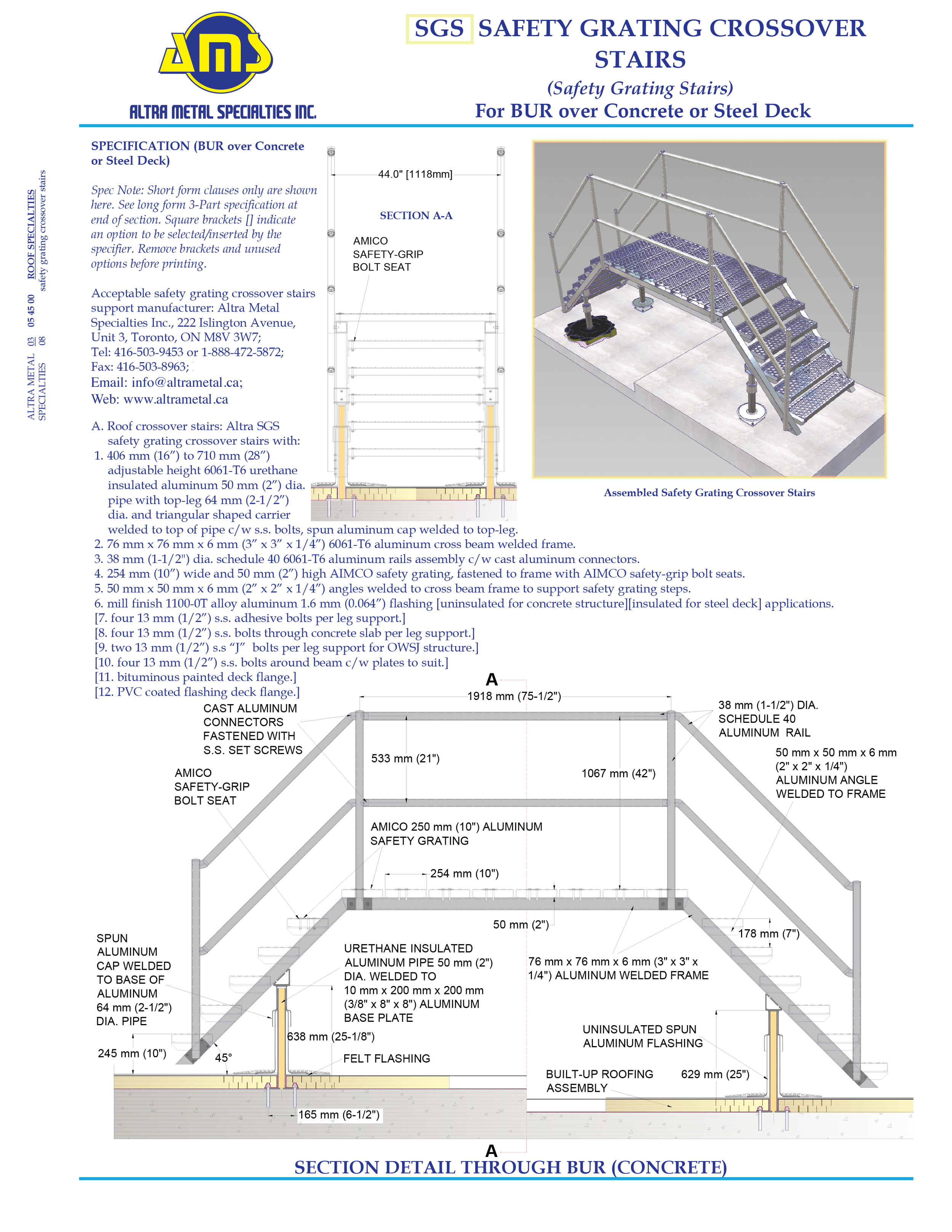

A. Roof crossover stairs: Altra SGS safety grating crossover stairs with:
1. 406 mm (16”) to 710 mm (28”) adjustable height 6061-T6 urethane insulated aluminum 50 mm (2”) dia. pipe with top-leg 64 mm (2-1/2”)
dia. and triangular shaped carrier welded to top of pipe c/w s.s. bolts, spun aluminum cap welded to top-leg.
2. 76 mm x 76 mm x 6 mm (3” x 3” x 1/4”) 6061-T6 aluminum cross beam welded frame.
3. 38 mm (1-1/2") dia. schedule 40 6061-T6 aluminum rails assembly c/w cast aluminum connectors.
4. 254 mm (10”) wide and 50 mm (2”) high AIMCO safety grating, fastened to frame with AIMCO safety-grip bolt seats.
5. 50 mm x 50 mm x 6 mm (2” x 2” x 1/4”) angles welded to cross beam frame to support safety grating steps.
6. mill finish 1100-0T alloy aluminum 1.6 mm (0.064”) flashing [uninsulated for concrete structure][insulated for steel deck] applications. [7. four 13 mm (1/2”) s.s. adhesive bolts per leg support.]
[8. four 13 mm (1/2”) s.s. bolts through concrete slab per leg support.]
[9. two 13 mm (1/2”) s.s “J” bolts per leg support for OWSJ structure.]
[10. four 13 mm (1/2”) s.s. bolts around beam c/w plates to suit.]
[11. bituminous painted deck flange.]
[12. PVC coated flashing deck flange.]
